ABRITES Equipment for Mercedes-Benz Cars (Complete set)

This set contains all the ABRITES hardware and software products for working with Mercedes-Benz cars. It allows you set to virgin, read data, personalize and activate FBS4 modules (ECU, TCU), clear “ELV Component Fault” error and program keys for selected models.

Hardware:

• ABRITES Vehicle Diagnostics Interface (AVDI)
• PROTAG Key and Transponder Programmer (ZN003)
• Distribution Box (ZN051)
• ABProg Programmer (ZN030)
• Cable for Mercedes-Benz EZS, 7G Tronic and ISM/DSM (CB011)
• FBS4/FBS3 ELV Connection Cable (CB026)
• Connection Cable for Mercedes-Benz MD1/MG1 ECU, FBS4 Manager and ECU Programming Tool (CB030)
• DS-BOX Extended Cable Set for direct connection with various Automotive/Truck modules on Bench work (CB403)
• ECU reading set (ZN074)
• USB IR Adapter (ZN076)
•  Universal BGA key 433/315 MHz for Mercedes-Benz vehicles (TA52)

Software:

• FBS4 instrument cluster calibration (MN030)
• DAS Manager for FBS4 cars (MN032)
• Mercedes-Benz FBS4 Vehicles Electronic Steering Lock Repair (MN033)
• FBS4 Personalization Expert (MN034)
• VGS4-NAG2 FBS4 virgin/personalization via ABPROG (MN035)

More information on products in this set:

Hardware:

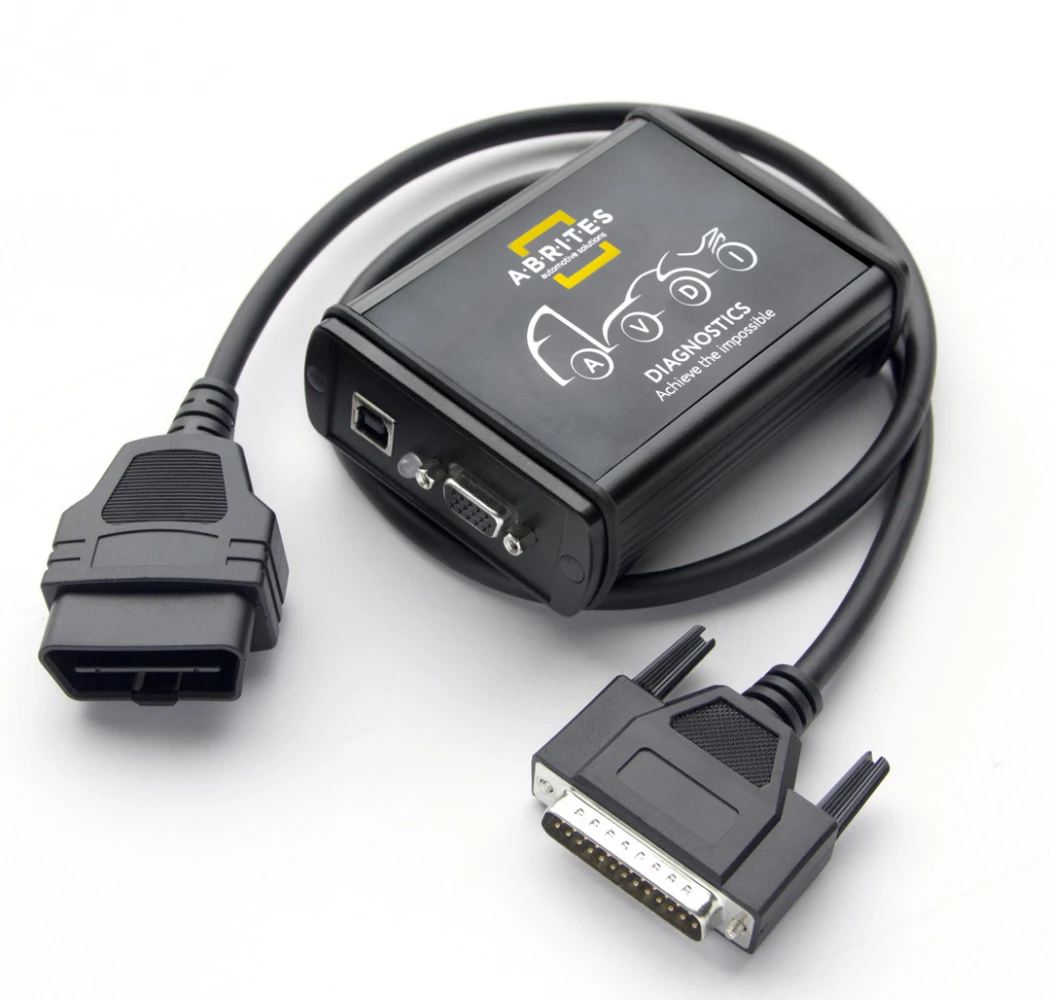

AVDI
The ABRITES Vehicle Diagnostics Interface is a powerful tool which offers support for 99 % of all automotive brands on the road. AVDI allows standard and advanced diagnostic procedures, as well as hundreds of complex operations, such as key programming, Engine Control Unit programming, module replacement, cluster calibration.

AVDI is your most powerful ally. The PassThru driver available in all AVDIs is an invaluable tool allowing you to work with third party software, when necessary as well as a vast array of special functions allowing them to get the full experience of our products straight away.
AVDI is compatible for standard and advanced diagnostics with most brands and models, such as Volkswagen, Audi, Skoda, Porsche, Lamborghini (VAG), Mercedes-Benz (passenger vehicles, truck and even buses), Smart, BMW, Mini, Rolls Royce, Toyota, Lexus, Peugeot, Citroen, Renault, Dacia, and many more! Heavy-duty, agricultural, recreational and maritime vehicles are also supported (J1939 compliant).

Standard diagnostic capabilities:

• Complete vehicle scan
• Module identification – see all modules in the vehicle, complete with VIN and part numbers (where applicable)
• Reading and clearing diagnostic trouble codes (DTCs)
• Live data display – see live data from the sensors in the vehicle in real time
• Actuator testing – identify any possible issues in the car by performing actuator tests
• Coding operations

The basic software also allows advanced procedures (for a selection of brands) such as:

• Adaptation of new modules
• Reset of used modules
• Key programming
• Instrument cluster calibration/Mileage recalibration
• Airbag renew
• Change software version of modules where applicable (updates)

Advanced diagnostics:

• Calibrations
• Configuration settings
• Coding options
• Diagnostic channel adaptations
• Guided functions
• Hundreds more, depending on the brand

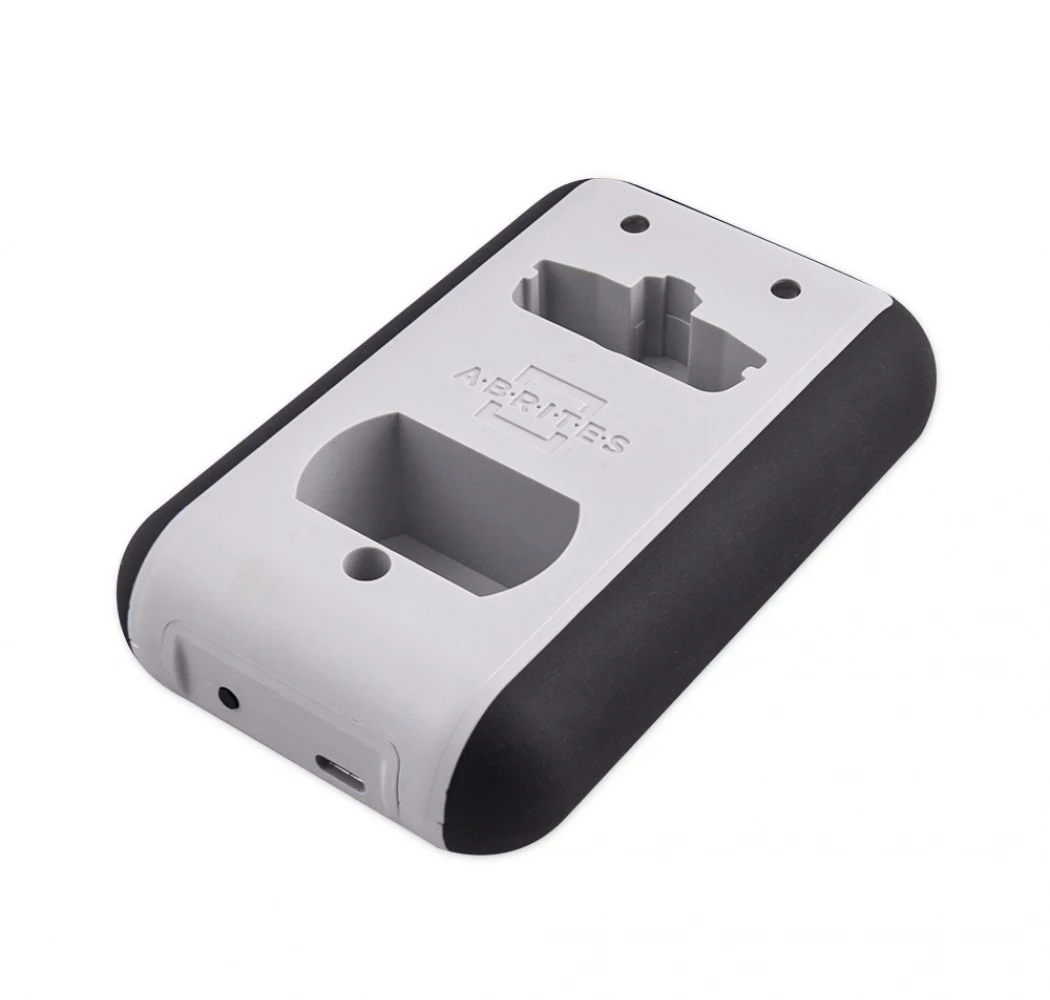

PROTAG
The new generation Abrites PROTAG Programmer is the latest upgrade to our powerful key programming tool!
The ZN003 contains the full functionality of the ZN002 and expands its capabilities. With the PROTAG you can perform operations with keys and transponders, used in the latest authentication systems and immobilizers.

The ZN003 is durable and ergonomically shaped to provide additional ease of usage, equipped with 3 slots for different type of transponders. One of the slots is specially developed for the Mercedes-Benz truck keys. The design is optimised to eliminate transponder positioning error and maximise efficiency. PROTAG is ready to program all keys and transponders produced by Abrites, as well as a vast variety of OEM ones. It is the ultimate key programming tool for the professional locksmith.

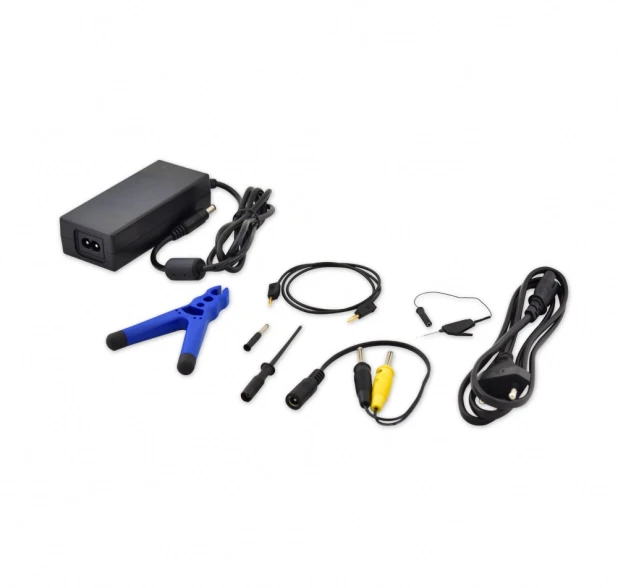

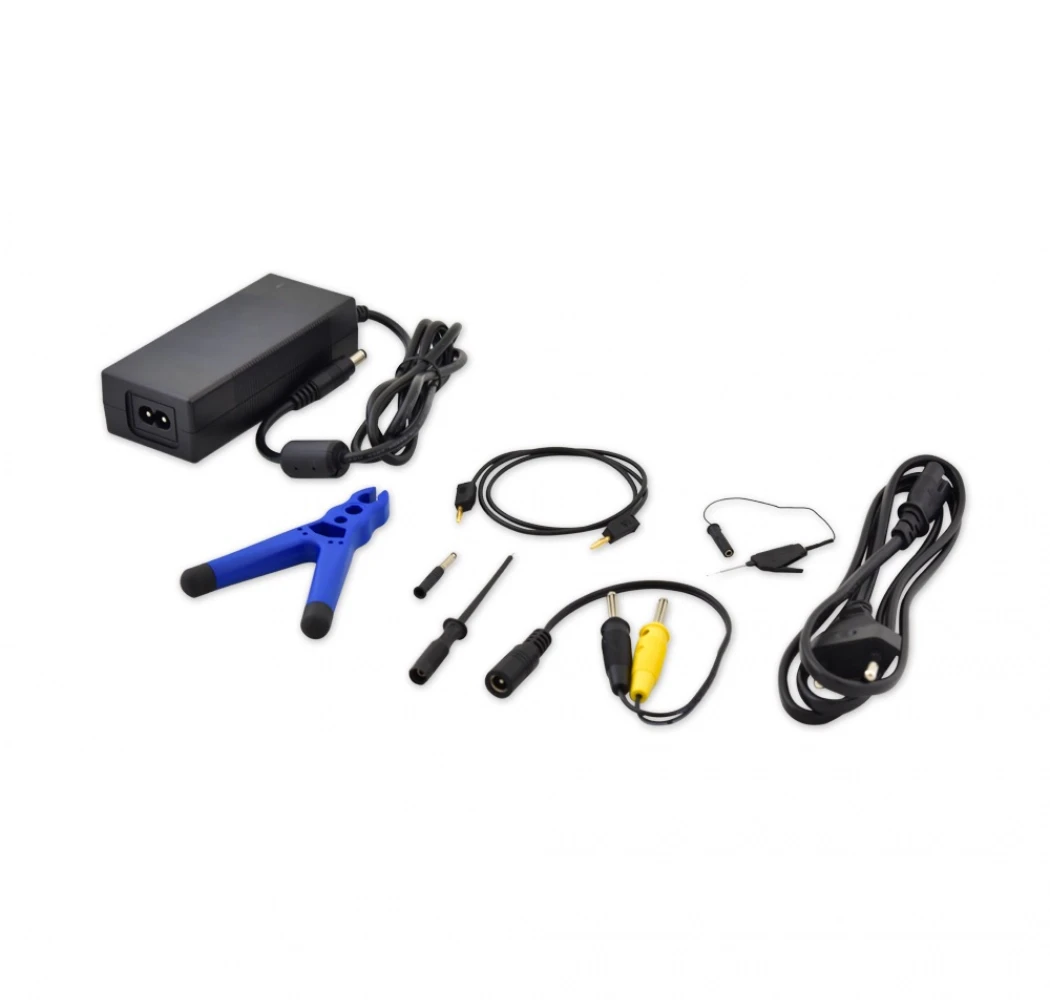

DISTRIBUTION BOX
ABRITES Distribution Box (ZN051) is an assisting tool, designed to work with AVDI interface and ABRITES diagnostic software for reading ECUs by direct connection and boot mode. The Distribution Box is convenient for working both on bench and in the car. It can be used to connect to CAN and K-Line, as well as provide ground and power (12V) from external power supply. ZN051 has a set of cables and pins used to connect to different modules, in order to virginise, personalise and activate these modules. The tool also has a fuse relay incorporated, allowing fast password extraction from Mercedes-Benz vehicles.

ABPROG
The ZN030 ABPROG Programmer is a set of devices, designed to assist with many procedures, which require work on bench with multiple units in the vehicle. Many applications for Mercedes such as NEC reset for keys v51 and 57.

Main functionalities:

• Read, write and erase SPI, Microwire and I2C memories
• Read, write and erase memory of the FEM/BDC without removing it
• Read and write Bosch EDC16 units (MPC)
• Reading, writing, and erasing of NEC MCUs from Mercedes-Benz IR-keys
• Renew HITAG 2 type keys
• Reading and writing NEC V850 in different modules
• Reading EWS masks

Cable for Mercedes-Benz EZS, 7G Tronic and ISM/DSM (CB011)
The CB011 cable set is intended for establishing a connection between AVDI and certain modules in Mercedes-Benz vehicles when required. The product is a great addition to the MN026/MN032 special function, especially when working with the DAS Manager on bench. This set of cables is used in any situation that requires communication with these modules.

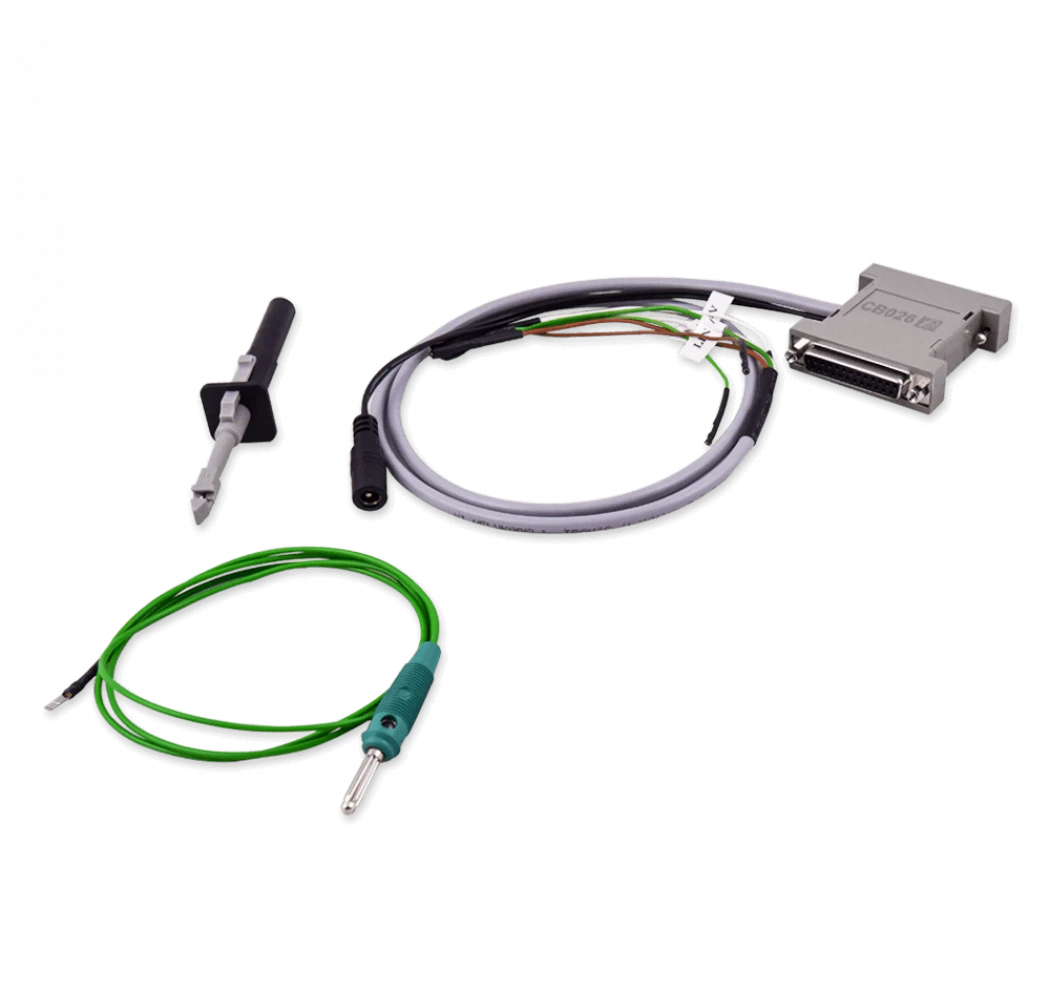

FBS4/FBS3 ELV Connection Cable (CB026)
The CB026 ELV Connection cable is developed to establish a connection between AVDI and FBS3/FBS4 Mercedes-Benz vehicles equipped with an ELV.

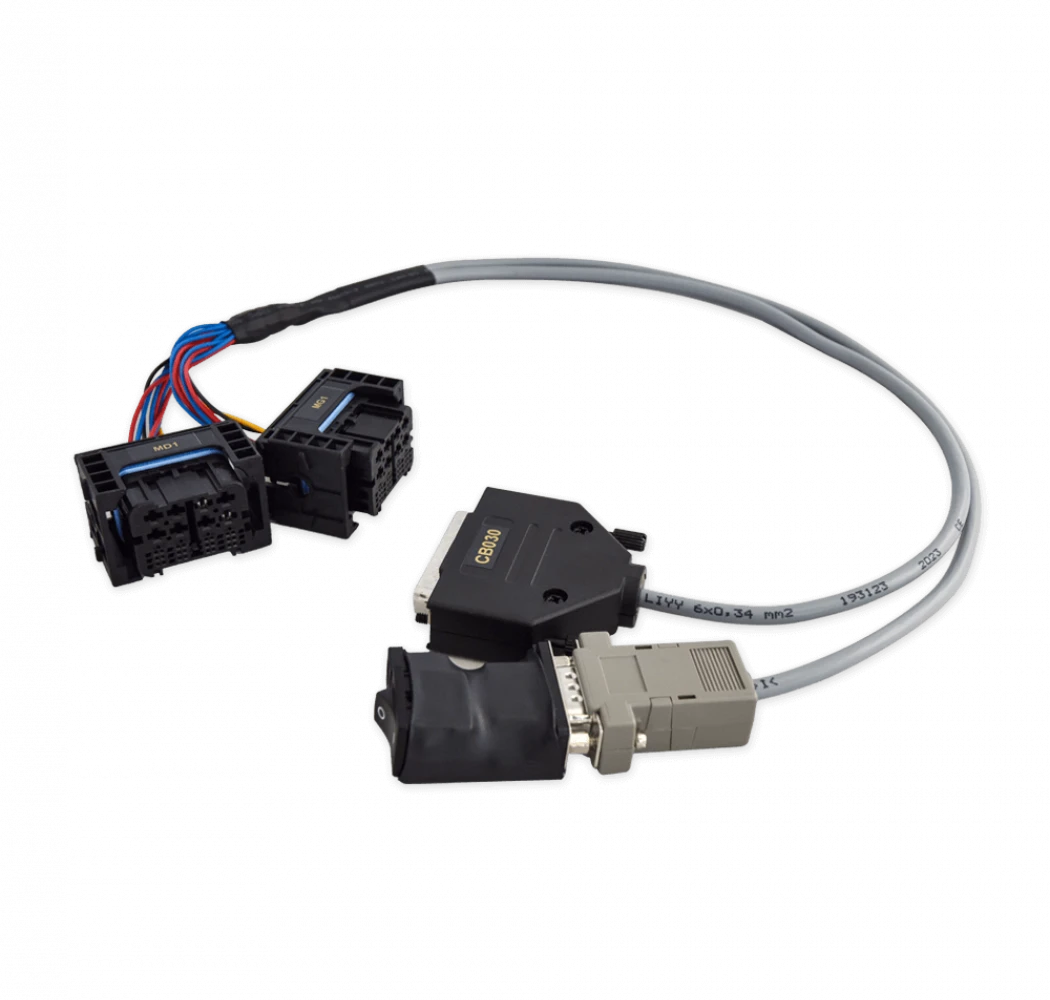

Connection Cable for Mercedes-Benz MD1/MG1 ECU, FBS4 Manager and ECU Programming Tool (CB030)
The CB030 cable is intended for direct connection on bench with the engine control units from BOSCH types MD1, MG1 in Mercedes-Benz vehicles and vans.
The cable is useful for diagnostic purposes on bench, and of course for FLASH/DFLASH programming.

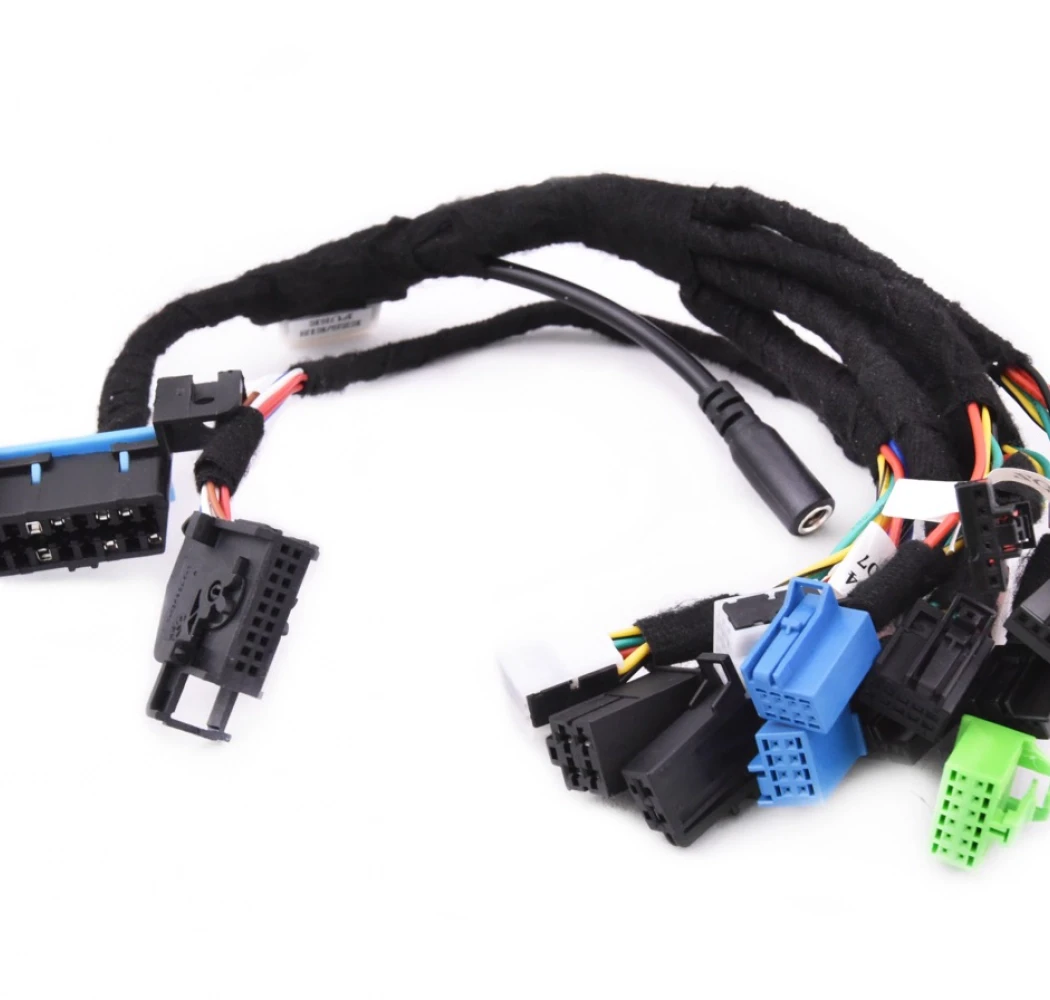

DS-BOX Extended Cable Set for direct connection with various Automotive/Truck modules on Bench work (CB403)
The CB403 cable is developed for working on modules, for example ECUs, TCUs, and others, on bench using the ZN051 Distribution Box. It has multiple connectors for establishing direct connection with a wide range of modules in trucks, buses, heavy-duty and passenger vehicles to read, write, virginise, personalise, update them and more!

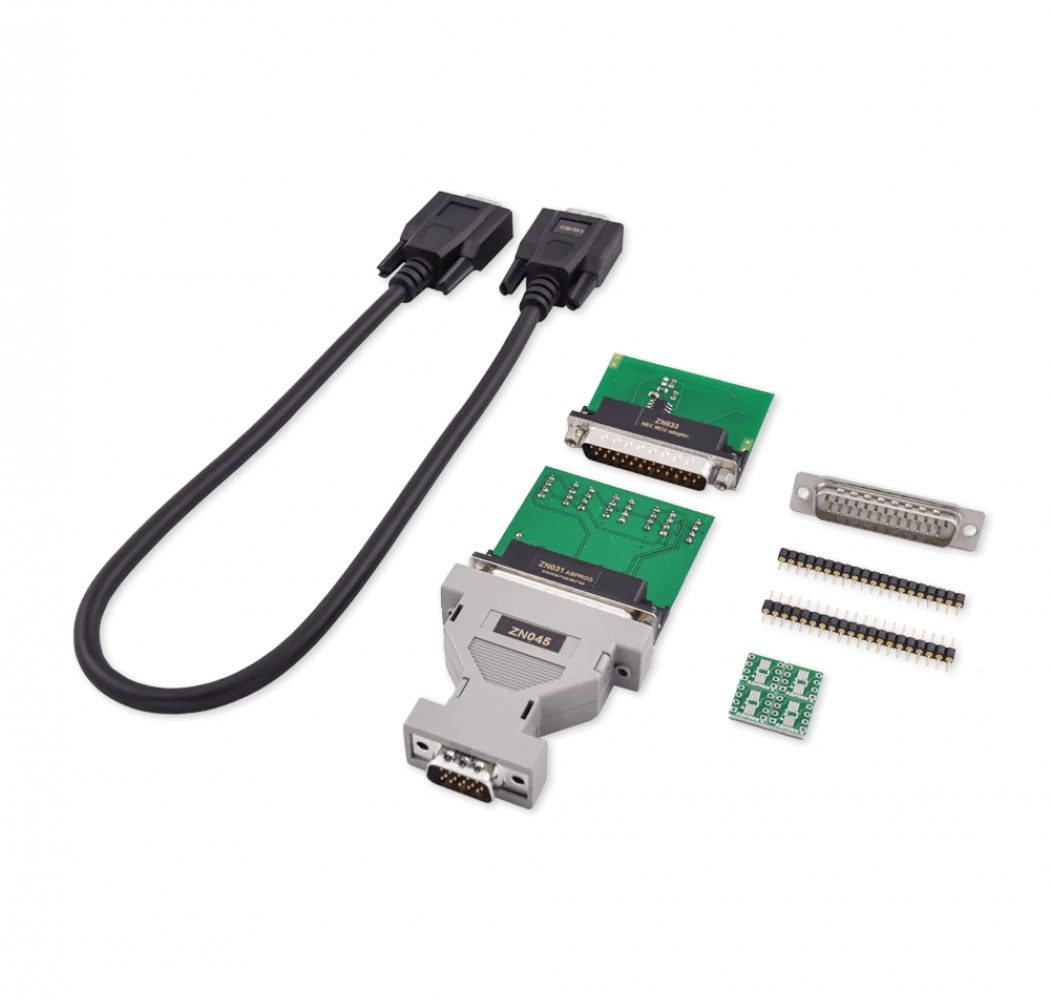

ECU reading set (ZN074)
The ZN074 set is developed and designed by the Abrites Team to aid you in ECU reading and writing procedures on bench. It is designed to work together with ZN051 Distribution Box and cannot be used individually.

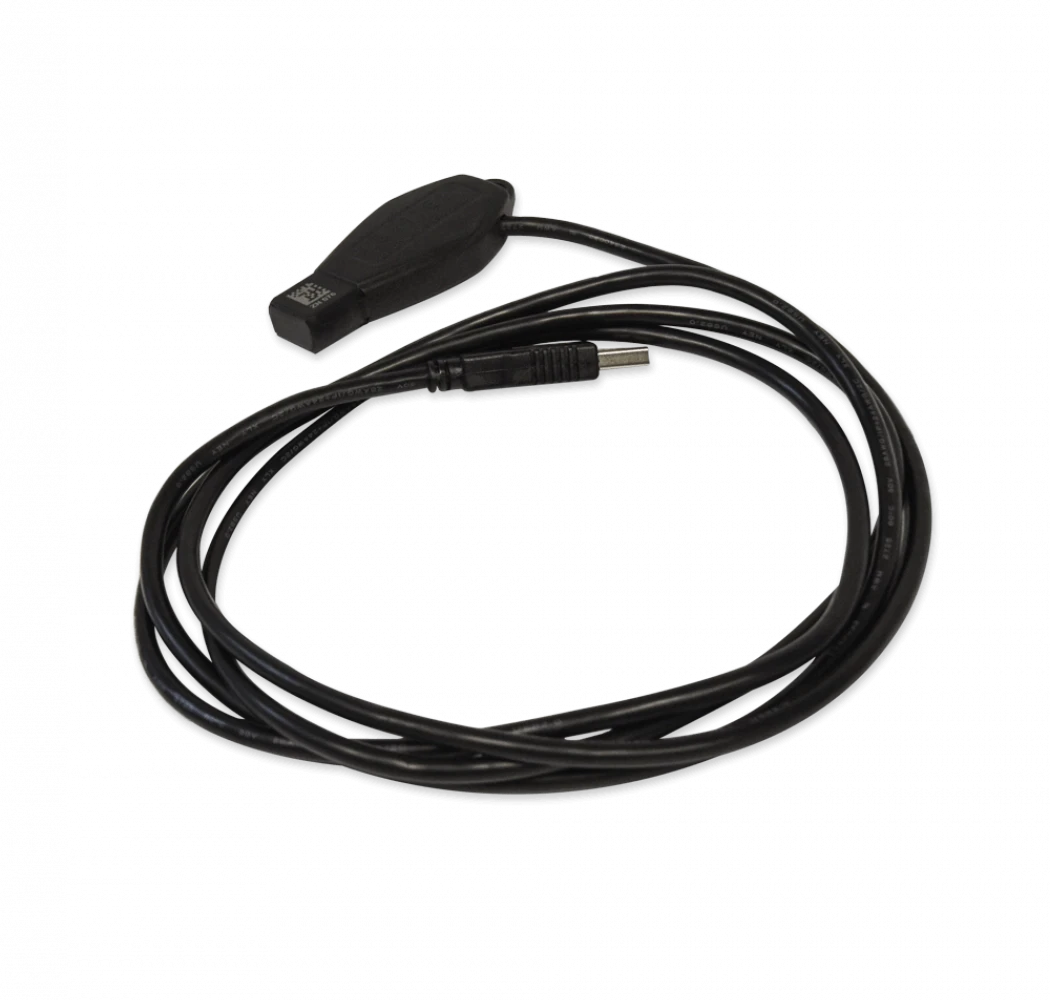

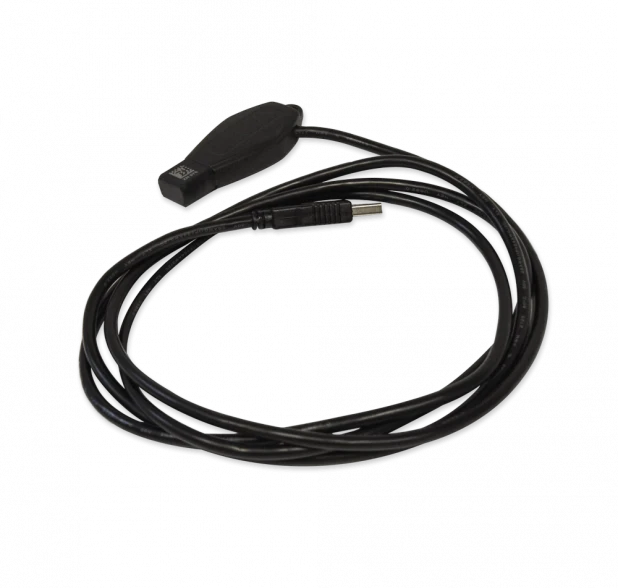

USB IR Adapter (ZN076)
This infrared adapter set is designed to be used for reading information from the EZS/EIS of Mercedes-Benz vehicles with IR locks. This information is required when performing key programming and module replacement procedures on these vehicles.

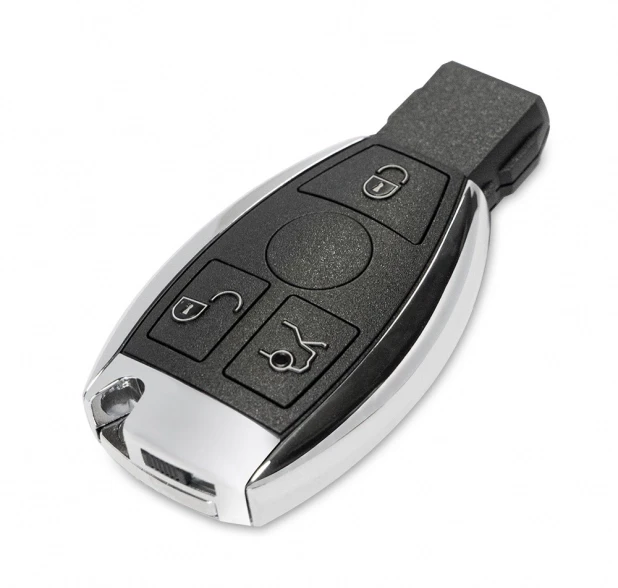

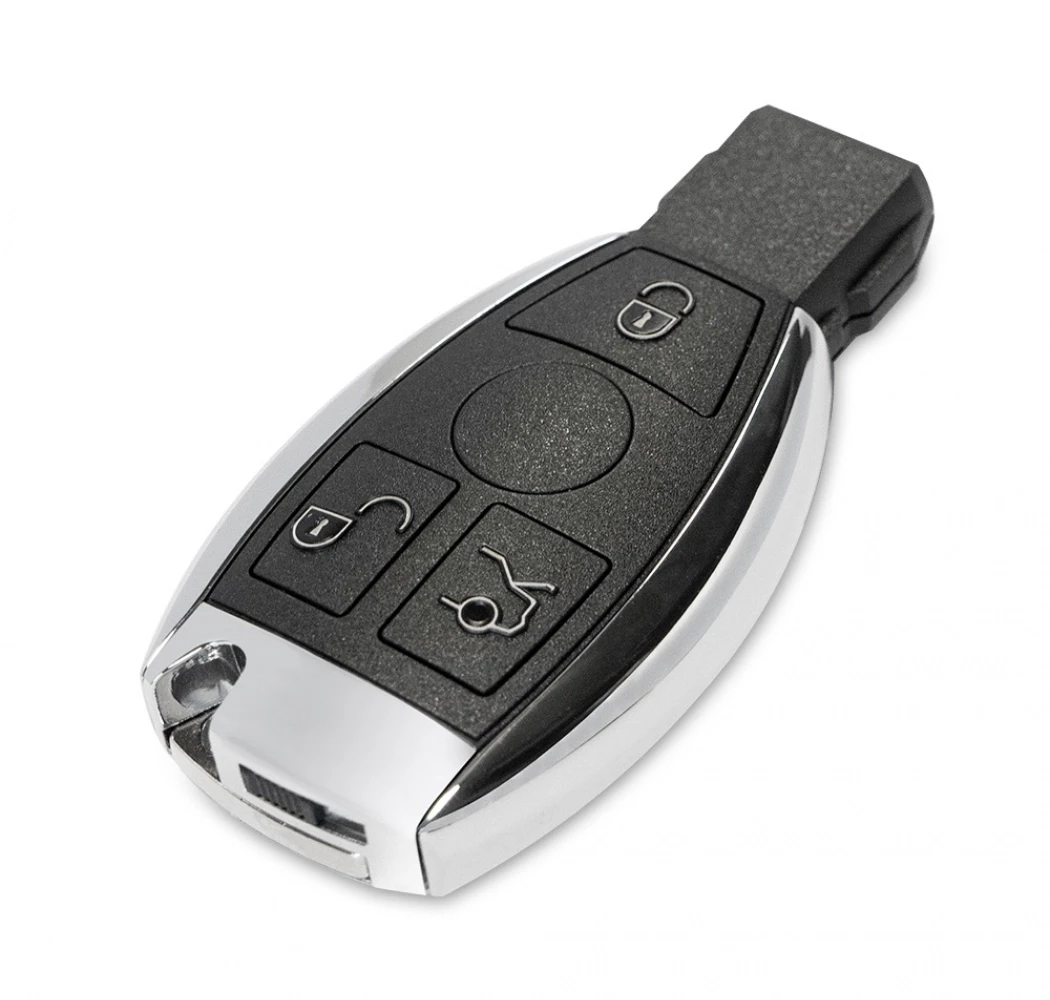

Universal BGA key 433/315 MHz for Mercedes-Benz vehicles (TA52)
The TA52 universal BGA Mercedes-Benz key is designed to be programmed to Mercedes-Benz FBS3 vehicles. The key is programmed completely by OBDII and allows for the frequency to be changed from 433 MHz to 315 MHz (and vice versa) using the PROTAG Programmer.

Software:

FBS4 instrument cluster calibration (MN030)

MN030 is the latest development dedicated to odometer calibration and module replacement by OBDII for dashboards of FBS4 vehicles equipped with IC213 or IC222 dashboard

Main functionalities:

• Blocks synchronisation between the Instrument Cluster and the EZS (for models with IC213)
• Allows successful mileage calibration
• Allows modules replacement (dashboard) - Make virgin and Adapt
• Different retrofit options like update from analogue to digital dials

DAS Manager for FBS4 cars (MN032)
MN032 is Mercedes FBS4 software license, designed by Abrites from the beginning to be the world leader in terms of Mercedes-Benz vehicles module replacement, both for new and used control units.

• Set FBS4 Electronic Control Modules to virgin state
• Read the personalization data from a FBS4 Control Modules and save it to a file
• Program personalization data from a previously saved file to a FBS4 Control Module
• FBS4 Control Modules Activation
• Display FBS4 Control Modules status including those assembled in hybrid and electric vehicles without dismantling
• VIN programming


Mercedes-Benz FBS4 Vehicles Electronic Steering Lock Repair (MN033)
MN033 is dedicated to resolving a problem with the "ELV Component Fault" which is preventing the vehicle from being started and driven.
This is a common fault in the Electronic Steering Lock (ESL/ELV) modules. The MN033 enables you to clear the critical error which blocks the vehicle's electronic steering lock.
Performed via direct connection to the ELV diagnostic line. It can be executed direct in the vehicle or on bench!

FBS4 Personalization Expert (MN034)
The FBS4 Personalization Expert license allows easy personalization of ALL virgin modules from the FBS4 generation of Mercedes DAS (Drive Authorization System).
Personalization expert practically has no limitations in its coverage! It was designed to work with and build on the MN032. For this reason, they are meant to work together. Personalization is done by internal CAN- BUS of the control modules. Indeed, the same simple personalization is possible for DSM and VGS modules too with no need to open the module or connect a programmer.

VGS4-NAG2 FBS4 virgin/personalization via ABPROG (MN035)
MN035 VGS4-NAG2 FBS4 virgin/personalization via ABPROG license is dedicated to work with VGS4-NAG2 7G-Tronic TCU of the FBS4/DAS4 generation.

• Read FBS4 data from VGS4-NAG2 modules with the help of ABPROG
• Set VGS4-NAG2 modules to virgin state using ABPROG
• Write FBS4 personalization data to the TCU using ABPROG. Writing is also available via the internal CAN-BUS

This package offer is only available until the end of September 2024.
