ABRITES DIAGNOSTICS FOR FIAT/ALFA/LANCIA/FCA

INTRODUCING

The ABRITES diagnostics for Fiat, Alfa and Lancia is a capable tool which enables users to perform basic and advanced diagnostics of FCA vehicles. All the procedures are smooth and user-friendly, made possible by the use of AVDI (ABRITES Vehicle Diagnostic Interface).

STANDARD DIAGNOSTICS

The ABRITES Diagnostics for FCA is now online!
All the capabilities of the offline diagnostics will be transferred to the online service gradually.

The standard diagnostic capabilities of our software include

• Scanning all electronic modules
• Reading and clearing diagnostic trouble codes
• Data display

• ECU-related procedures (identification and configuration)
• Actuator tests in order to show the source of the faults

The Abrites software for FCA supports not only Fiat and Lancia, but also the US vehicle brands from the group; Dodge, Chrysler and Jeep, making it a comprehensive diagnostic tool for multiple brands.

Online diagnostics screenshots:

Offline diagnostics screenshots:

KEY PROGRAMMING

The dedicated ABRITES key programming software for FCA vehicles enables you to program keys/transponders and remote controls for Fiat, Lancia, Alfa, Dodge, Chrysler, Jeep and IVECO vehicles.

The ABRITES key programming solutions for FCA is immensely useful in ALL KEYS LOST situations. It allows PIN code reading and transponder programming/key learning for a large number of FCA vehicles, including ones produced after 2020 such as Alfa Romeo Giulia, Stelvio, Jeep Compass, Fiat 500x, Doblo, Fiorino and many others.

Moreover, the software allows reading and updating the configuration data for a number of BCMs by OBDII.

Additionally, the ABRITES key programming solutions for FCA include keys, developed and produced by our team, which you can see in Transponders and keys section.

Alfa Romeo 147

Alfa Romeo 159

Alfa Romeo Brera

Alfa Giulia (incl. 2020+)

Alfa Romeo Giulietta

Alfa Romeo GT

Alfa Romeo Mito

Alfa Romeo Stelvio (incl. 2020+)

500 (incl. 2020+)

500L

500X

Albea

Argos

Bravo

Croma

Doblo (incl. 2020+)

Ducato (up to 2019)

Egea

Fiorino (incl. 2020+)

Freemont

Grande Punto

Idea

Linea

Palio

Panda (incl. 2020+)

Punto

Punto Evo

Qubo (incl. 2020+)

Siena

Strada

Stilo

Tipo

Delta

Flavia

Thesis

Ypsilon (incl. 2020+)

Cherokee KL 2013+

Commander

Compass (incl. 2020+)

Grand Cherokee

Liberty (2008+)

Renegade (incl. 2020+)

Wrangler (incl. 2020+)

200

300

Pacifica (2017+)

PT Cruiser

Sebring

Town & Country

Aspen

Avenger

Caliber

Caravan

Challenger

Charger

Dart

Durango

Journey

Magnum

Neon

Nitro

Viper (2013+)

RAM 1500, 2500, 3500, 4500, 5500

Dakota

Promaster City

Promaster 1500, 2500, 3500 (up to 2019)

RAM 1500, 2500, 3500 Cab Chasis and Pickup, 4500, 5500

RAM (Mexico)

Citroën Jumper

Citroën Relay

Iveco Daily (Up to 2019)

Maserati Ghibli

Maserati Levante

Opel/Vauxhall Combo D

Peugeot Boxer (Up to 2020)

Peugeot Manager

PIN and Key Manager for FCA Vehicles

FN022

VEHICLE MODULE SYNCHRONISATION

This new functionality is used to synchronize the vehicle identification number of modules, such as distronic, ABS, climate control, and many more, in order to adapt them to the vehicle. Immobilizer modules like BCM, ECU, RFH cannot be exchanged using this license.
It allows the adaptation of second-hand modules unrelated to the immobilizer in Alfa Romeo, Fiat, Jeep, and Lancia vehicles.


NEW! Vehicle Module Synchronization

FN023

PROXI PROGRAMMING

The latest Abrites solutions for Fiat/Lancia/Alfa/FCA vehicles allows proxi alignment between the BCM and the other modules in the vehicle.
In case of a BCM replacement, lets you get the current car configuration from the IPC. FCA Proxi alignment tool is an outstanding solution allowing:

• Seamless module replacement and personalisation
• Customisation options, enabling and disabling features
(start/stop system enable and disable, adding rain sensors, removing them, gearshift sensors, indicators)
• Different retrofitting options

• Read/Update and save Proxi alignment data to a file
Coding/configuration programming for FCA US platform-based vehicles (Jeep Wrangler/Gladiator/Grand Cherokee, Dodge RAM/Charger/Challenger, etc.)

ALFA Giulietta (940)

ALFA Giulia (952)

ALFA Stelvio (949)

FIAT 500 (312)

FIAT 500e (332) (New FIAT 500)

FIAT 500L (330)

FIAT 500X (334)

FIAT Doblo (263)

FIAT Ducato (250)

FIAT Fiorino (225)

FIAT Tipo (356)

FIAT Viaggio (343)

JEEP Renegade (520)

RAM ProMaster City (636)

Proxi Programming

FN021

INSTRUMENT CLUSTER DATA MANAGER

Cluster calibration of Fiat/Lancia/Alfa/FCA vehicles can be performed using the ABRITES special function FN013 Instrument Cluster Data Manager. This software solution is dedicated to reading and updating the cluster-related configuration data and flash of these vehicles. It allows cluster calibration and updating Instrument cluster working data. BOOT MODE connection is sometimes required, in the cases when reading and updating via OBDII is inapplicable.

The calibration of Engine Control Unit BOSCH EDC16 is tested on selected models from the vehicles manufacturing group (Fiat Croma, Alfa 159, Fiat 16, New Fiat Bravo 1.6 JTD, New Lancia Delta 1.6 JTD, Alfa GTV 1.9 JTD).

Alfa 147

Alfa 159

Alfa Croma 2006+

Alfa Giulietta

Alfa MiTo

Chrysler Town & Country

Chrysler Voyager 2008

Dodge Journey 2011 Neon

Dodge Neon

Dodge Nitro

Fiat 500

Fiat 500 TFT

Fiat 500L

Fiat 500L 2017

Fiat 500X

Fiat Egea

Fiat Freemont

Fiat

Fiat Albea

Fiat Tipo

Fiat Bravo 2005+

Fiat Croma 2006

Fiat Doblo 2001

Fiat Doblo 2009

Fiat Ducato 2006

Fiat Ducato 2011

Fiat Fiorino

Fiat Grande Punto

Fiat Idea

Fiat Linea

Fiat Palio

Fiat Panda 2003

Fiat Panda 2011

Fiat Punto

Fiat Punto EVO

Fiat Stilo 2001 (Visteon)

Fiat Stilo 2005

Fiat Strada

Iveco Daily 2006

Iveco Daily 2011

Iveco Daily 2014 (24C16)

Jeep Cherokee

Jeep Compass 2017

Jeep Grand Cherokee

Jeep Renegade

Jeep Wrangler 2007

Lancia Voyager

Lancia Musa 2006

Lancia Delta 2008

Lancia Ypsilon 2003

Lancia Ypsilon 2012

Maserati Quattro Porte 2005/2006

Ford Ka

RAM 1500

Instrument Cluster Data Manager

FN013

ENGINE CONTROL UNIT FLASH MANAGER

The ABRITES special function FN014 Engine Control Unit Flash Manager allows users to read the flash memory and internal configuration memory by diagnostic connection (OBDII) for Fiat/ Lancia/ Alfa/ FCA vehicles.
This function supports ECUs Marelli IAW 4AF/4EF/59F/5AF/5NF/6JF IAW 5SF3; BOSCH ME7.3H4/ME7.3.1/ME7.2.1 (BOOT MODE); and MJD 6JF – IMMO OFF.

FCA ECU flasher

BOSCH ME7.3H4 (BOOT MODE)

BOSCH ME7.3.1 (BOOT MODE)

BOSCH ME7.2.1 (BOOT MODE)

Magneti Marelli IAW 4AF

Magneti Marelli IAW 4EF

Magneti Marelli IAW 59F Motorola (HW < 100)

Magneti Marelli IAW 59F Siemens (HW > 100)

Magneti Marelli IAW 5AF

Magneti Marelli IAW 5NF

Magneti Marelli IAW 6JF

Magneti Marelli IAW IAW 5SF3 (CAN)

Magneti Marelli 8GMF

Magneti Marelli 8GSF

Magneti Marelli 8GSW

Magneti Marelli 9GF

Magneti Marelli 8MJD 6JF MultiJet 1.3

Magneti Marelli MJD 8F2 (CAN)

Magneti Marelli MJD 8F3 (CAN)

Magneti Marelli MJD 9DF

Magneti Marelli MJD 6JF – IMMO OFF

Engine Control Unit Flash Manager

FN014

ENGINE CONTROL UNIT CONFIGURATION MANAGER

The ABRITES special function FN015 Engine Control Unit Configuration Manager is a function dedicated to reading and updating ECU’s configuration memory by diagnostics for Fiat/Lancia/Alfa/FCA vehicles. Our software solution provides an option for resetting ECUs to factory condition and virginising the module, as well.

Alfa 145 - 1.9 JTD

Alfa 146 - 1.9 JTD

Alfa 147 - 1.9 JTD 16V

Alfa 147 - 1.9 JTD 8V

Alfa 156 - 1.9 JTD

Alfa 156 - 2.4 JTD

Alfa 166 - 2.4 JTD

FIAT Brava - 1.9 JTD

FIAT Bravo - 1.9 JTD

FIAT Doblo - 1.9 JTD

FIAT Ducato - 2.0 JTD

FIAT Ducato - 2.3 JTD

FIAT Ducato - 3.8 JTD

FIAT Marea - 1.9 JTD

FIAT Marea - 2.4 JTD

FIAT Marengo - 1.9 JTD

FIAT Multipla - 1.9 JTD

FIAT Palio - 1.9 JTD

FIAT Punto - 1.9 JTD

FIAT Scudo - 2.0 JTD

FIAT Siena - 1.9 JTD

FIAT Siena - 1.9 JTD

FIAT Stilo - 1.9 JTD

Lancia K - 1.9 JTD

Lancia Lybra - 1.9 JTD

Lancia Lybra - 2.4 JTD

Lancia Thesis - 2.4 JTD

Lancia Z - 1.9 JTD

EDC15C5

EDC15C7

MJD 6JF/8F2

Marelli IAW 4AF

Marelli IAW 4EF

Marelli IAW 59F

Marelli IAW 5AF

Marelli IAW 5AM

Marelli IAW 5NF

Marelli IAW 5SF3

Marelli IAW 8GMF

Marelli IAW 8GSF

BOSCH ME7.3H4 (boot)

BOSCH ME7.3.1 (boot)

BOSCH ME7.2.1 (boot)

Marelli Multijet MJD 6JF

SPECIAL FUNCTION FN015

ENGINE CONTROL UNIT CONFIGURATION MANAGER

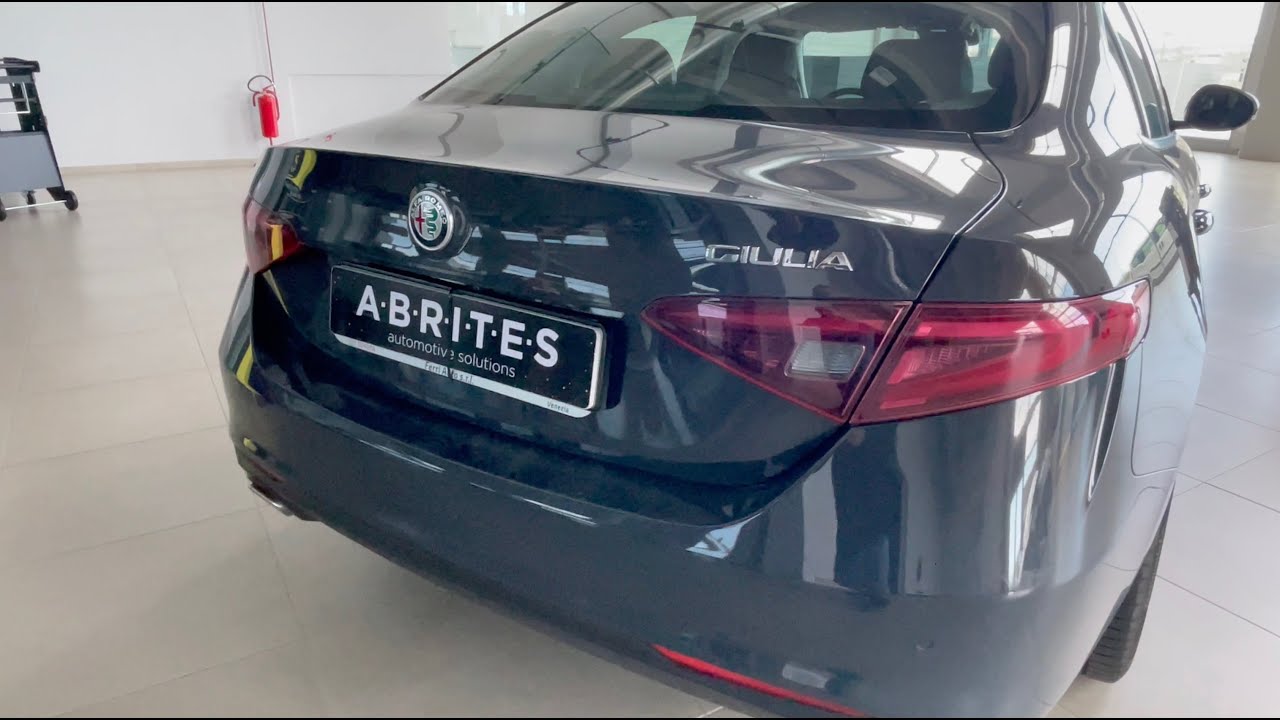

2017 Alfa Romeo Giulia Module Synchronisation

See how to use the latest ABRITES functionality for Fiat, Lancia, Alfa and FCA vehicles. The FN023 Vehicle Module Synchronisation is used when adapting non-immobiliser related modules. It is totally risk-free and guarantees success!
