In our latest Abrites news, we announced that we can now modify the CCF in Jaguar and Land Rover vehicles using Abrites Diagnostics for JLR. But what exactly is the CCF, why does it matter so much in modern workshop workflows, and how does AVDI give you total control over it?

What Is the Car Configuration File (CCF)?

The Car Configuration File (CCF)—often referred to as the Central or Control Configuration File—acts as the electronic DNA of modern Jaguar Land Rover (JLR) vehicles. It is the master configuration file that dictates the exact build specification, enabled features, and regional settings across the vehicle’s entire electronic network.

On older JLR architectures (such as the early 2000s X-Type or S-Type), this concept was known as the Vehicle Identification Block (VID). As vehicle architectures evolved, the CCF became a far more sophisticated, centralized backbone.

Architecture and Module Distribution

The CCF is not a passive data file. It is an active network blueprint that governs module-to-module communication protocols and dictates slave module behavior.

• Primary Storage: The CCF is typically hosted and governed by the Body Control Module (BCM), which acts as the central gateway for body electronics, lighting, and security access. In fact , like BMW FEM or BDC we have two modules in one casing- BCM and GATEWAY.

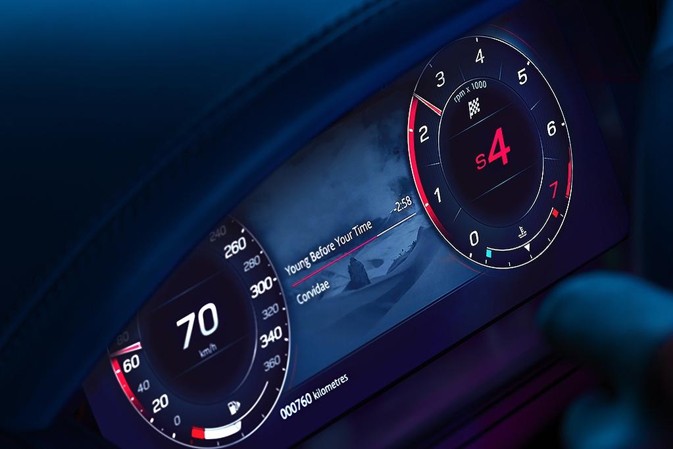

• Secondary/Backup Storage: Copies of the CCF are mirrored in the Instrument Cluster (IPC) and sometimes the Powertrain Control Module (PCM) for redundancy. If the BCM (Gateway) is replaced or corrupted, the CCF can often be restored by cloning the backup from the IPC.
• Network Distribution: Upon vehicle initialization, the CCF configuration is broadcast across the CAN or FlexRay networks to inform modules (such as the KVM/RFA for keyless entry, or the ACM for climate control) of their specific operational parameters.

Diagnostic & Retrofit Use Cases for CCF Editing

Reading, modifying, and writing the CCF is a core requirement for advanced diagnostics, module replacement, and retrofitting. Standard OBD-II scanners cannot interact with this layer of the vehicle network.

Key applications include:

1. Retrofitting & Factory Upgrades: Enabling options not specified at the factory, such as upgrading halogen headlights to Xenon/LED, enabling ambient lighting, or activating Adaptive Cruise Control (ACC).
2. Market Conversions: Altering regional parameters when importing or exporting vehicles (e.g., converting speedometer units, changing language packs, or adjusting radio frequencies from USA to EU).
3. System Disablement & Conversions: Bypassing problematic or deleted hardware. Common examples include disabling an electronic steering column lock or coding out factory air suspension when converting a vehicle to coil springs.
4. Module Replacement: When installing a virgin or donor module, the CCF must be written to ensure it matches the vehicle's exact trim level and specification (e.g., SE vs. Autobiography).

Access and Tooling: The Abrites Advantage

Extracting and modifying the CCF traditionally requires pulling the configuration as a VBF (Vehicle Bus File), editing the parameters, and pushing it back into the target modules.

Historically, technicians had to rely on cumbersome legacy or online OEM tools:

• JLR SDD (Symptom Driven Diagnostics): Used for legacy vehicles (pre-2017) communicating over CAN/K-Line. Modifying the CCF within SDD usually requires bypassing standard dealer lockouts by entering "Engineering Mode" via seeded password generators.
• Pathfinder: Used for DoIP (Diagnostics over Internet Protocol) vehicles (roughly 2017–2021).
• TOPIx Cloud: The current online diagnostic ecosystem for the newest JLR architectures, requiring active subscription authentication and restrictive access.

The problem with the OEM tools is that they don’t let you toggle options on or off- what they do is find what is different and tell you that it can change the CCF.

The AVDI Solution

With the latest update to Abrites Diagnostics for JLR, AVDI joins the elite rank of diagnostic tools capable of directly reading, editing, and writing the CCF. By integrating seamless CCF editing directly into your AVDI environment, you eliminate the need for dealer engineering codes or restrictive online cloud authentications. You can toggle each option separately and modify the CCF to your specification.

You gain complete control over JLR electronic configurations directly from a single interface.

Until next time, try to have fun at work!
Alek
