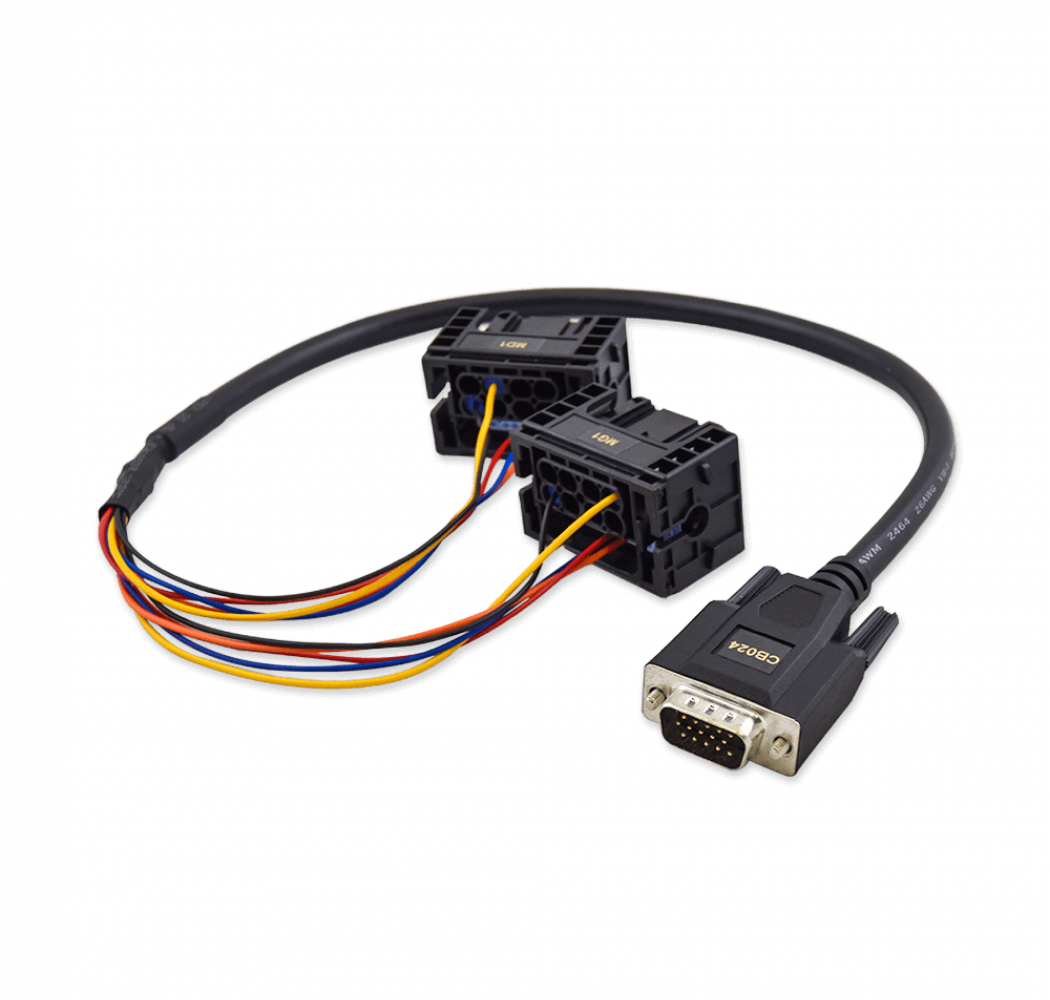

CB024 - Mercedes-Benz MD/MG ECU connection cable
The CB024 cable is intended for direct connection on bench with the engine control units from BOSCH types MD1, MG1 in Mercedes vehicles and vans. The cable is useful for diagnostic purposes on bench and of course for FLASH/DFLASH programming using EP003 functionality of Abrites ECU Programming Tool.
The CB024 has two identical connectors with different pinouts for MG and MD ECUs. One of the connectors is specially designed for MD type of ECUs, and the other is for MG type of ECUs. Exercise caution and make sure you connect the right type of connector to the vehicle to avoid ECU malfunction.
In order to complete the procedures, you will require the ZN051 Abrites Distribution Box.
An AVDI with an active AMS is required to complete the procedures.
Еngine control units from BOSCH types MD1, MG1 in Mercedes vehicles and vans
