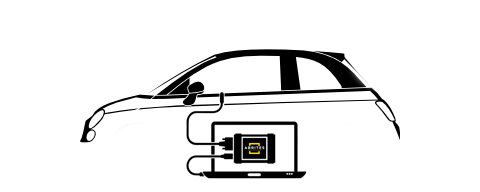

ABRITES Diagnostics for Fiat/Lancia/Alfa/FCA is an advanced diagnostic software application designed to work together with the Abrites Vehicle Diagnostic Interface to perform basic and advanced diagnostics in Fiat, Lancia and Alfa vehicles.



It provides full module identification for the Fiat Chrysler Automobiles vehicles as well, it allows diagnostic trouble code reading and clearing, also the ability to perform actuator tests in order to determine the cause of an electrical or mechanical fault. The diagnostic functions provided allow it to be on par with OEM diagnostic equipment while applying the intuitive and simplistic approach tipical for the Abrites diagnostic software. Abrites diagnostics software allows the user to work with almost 100% of the vehicles by Fiat, Alfa Romeo, Lancia and models from the FCA Group (Fiat, Alfa, Chrysler, Dodge and Jeep including models built after 2013).

It is very important to note that the software covers vehicles from the full range of the FCA automotive group. This includes not just FIAT vehicles but also all American brands under the FCA name - Dodge, Chysler, Jeep. We provide support for all these cars up to 2018.

The software can perform standard diagnostics such as:



Instrument Cluster Data Manager

Update of Instrument Cluster working data

Calibration by OBDII in cluster of CAN based vehicles:



Alfa 147

ALfa 159

Alfa Giulietta

Alfa MiTo

Bravo 2005+

Croma 2006+


Doblo 2009+

Ducato 2006 - 2011

Ducato 2011+

Fiat 500


Ford Ka

Grande Punto


Lancia Delta 2008+

Lancia Musa 2006+

Lancia Y

Lancia Ypsilon 2012


Maserati Quattro porte 2005, 2006




Punto Evo


Stilo 2001+



Calibration of Engine Control Unit - BOSCH EDC16 - Tested Version for now : Fiat Croma, Alfa 159, Fiat 16, New Fiat Bravo 1.6 JTD, New Lancia Delta 1.6 JTD, Alfa GTV 1.9 JTD

Engine Control Unit Flash Manager

Reading and Updating ECU’s flash memory by diagnostic. ECUs supported: Marelli IAW 4AF/4EF/59F/5AF/5NF/6JF IAW 5SF3; BOSCH ME7.3H4/ME7.3.1/ME7.2.1 ( BOOT MODE )

Engine Control Unit Configuration Manager

Reading and Updating ECU’s configuration memory by diagnostic. Reset to factory new state option. ECUs supported: EDC15C5, EDC15C7, MJD 6JF/8F2; Marelli IAW 4AF, 4EF, 59F, 5AF, 5AM, 5NF, 5SF3, 8GMF, 8GSF; BOSCH ME7.3H4 (boot), ME7.3.1 (boot), ME7.2.1 (boot)

Read/update memory, Calibration by OBDII of Engine Control Unit - EDC15C5(EURO2), EDC15C7(EURO3). This model ECU have the following vehicles:


Alfa 145 - 1.9 JTD

Alfa 146 - 1.9 JTD

Alfa 147 - 1.9 JTD 16V ; 1.9 JTD 8V

Alfa 156 - 1.9 JTD ; 2.4 JTD

Alfa 166 - 2.4 JTD

Fiat Bravo - 1.9 JTD

Fiat Brava - 1.9 JTD

Fiat Doblo - 1.9 JTD

Fiat Ducato - 2.0 JTD ; 2.3 JTD ; 3.8 JTD

Fiat Marea - 1.9 JTD ; 2.4 JTD

Fiat Marengo - 1.9 JTD

Fiat Multipla - 1.9 JTD

Fiat Punto - 1.9 JTD

Fiat Palio - 1.9 JTD

Fiat Stilo - 1.9 JTD

Fiat Siena - 1.9 JTD

Fiat Scudo - 2.0 JTD

Lancia K - 1.9 JTD

Lancia Lybra - 1.9 JTD ; 2.4 JTD

Lancia Thesis - 2.4 JTD

Lancia Z - 1.9 JTD




Read/update memory, Calibration , Make VIRGIN by OBDII of Engine Control Unit - Marelli Multijet MJD 6JF. This model ECU have the following vehicles:


Fiat new Panda - 1.3 IAW Multijet MJD 6JF

Fiat Idea - 1.3 IAW Multijet MJD 6JF Fiat Doblo - 1.3 IAW Multijet MJD 6JF Fiat Punto - 1.3 IAW Multijet MJD 6JF
Fiat Grande Punto - 1.3 IAW Multijet MJD 6JF Fiat Cinquecento - 1.3 IAW Multijet MJD 6JF Lancia Musa - 1.3 IAW Multijet MJD 6JF Lancia Ypsilon - 1.3 IAW Multijet MJD 6JF

Read/Update ConfData Make VIRGIN by OBDII of Engine Control Unit - Marelli IAW 4AF/4EF/59F/5AF/59AM/59M/5NF; IAW 5SF3/5SF8 (Kline/CAN); 5SF9 (CAN); 8GMF; 8GSF; MJD 6JF (Kline); MJD 6F3 (Kline/CAN); MJD 8F2 (Kline/CAN); Bosch ME7.3H4 (BOOT MODE); Bosch ME7.3.1 (BOOT MODE) Remote Frequency HUB direct connection via internal CAN for new models.

BCM and Key Manager for FCA vehicles


- FIAT CHRYSLER Mechanical key models (Fiat Tipo, Fiat 500X,Jeep Renegade 2015-2020, etc...) Equipped with MEGAMOS AES


Key programming. Transponders/Keys preparation. BCM - Configuration data read and update,PIN, component protection data
BCM Read/Update ConfData by OBDII. Supported units:

- Remote Frequency HUB direct connection via internal CAN for new models.

Transponder maker - Preparing transponder by dump of immobilizer to be ready for key programing.
KEY PROGRAMMING  - by OBDII key programming for variuos models Fiat, Alfa, Lancia - Alfa 147, Mito; Fiat Freemont, 500, 500L, 500X, Bravo, Grande punto, Croma, Doblo, Ducato, Fiorino, Idea, Palio,
Panda, Stilo; Lancia Thesis, Delta; Jeep Cherokee KL 2013+; CHRYSLER 200,300,PT Cruiser,Town & Country,Sebring; DODGE - Nitro, Viper (2013+), Dart, Dakota, Aspen, Avenger,
Caliber, Caravan, Challenger, Charger, Durango, Journey, Magnum, RAM, RAM (Mexico), RAM 1500, 2500, 3500, 4500, 5500; JEEP - Commander, Compass, Grand Cherokee, Wrangler,
Liberty (2008+) Reading of the PIN codes of the new Chrysler/Dodge/Jeep models such as the Chrysler Pacifica from 2017+
PIN code reading from the Wireless Control Module (WIN/WCM) or Radio Frequency Hub (RFH) for Chrysler, Dodge and Jeep vehicles(2006-2011),Fiat Tipo, Fiat 500X,Jeep Renegade 2015-2020, ALFA ROMEO STELVIO/ GIULIA UP TO 2020
Remote control programming by OBDII : Alfa 147; Fiat Bravo, Chroma, Idea, Palio, Panda, Punto, Stilo, Doblo, Ducato; Lancia Thesis
