Abrites Diagnostics

AVDI Common

































The Abrites software and hardware products are developed, designed and manufactured by Abrites Ltd. During the production process we comply to all safety and quality regulations and standards, aiming at highest production quality. The Abrites hardware and software products are designed to build a coherent ecosystem, which effectively solves a wide range of vehicle-related tasks, such as:

• Diagnostic scanning;

• Key programming;
• Module replacement,
• ECU programming;
• Configuration and coding.

All software and hardware products by Abrites Ltd. are copyrighted. Permission is granted to copy Abrites software files for your own back-up purposes only. Should you wish to copy this manual or parts of it, you are granted permission only in case it is used with Abrites products, has “Abrites Ltd.” written on all copies, and is used for actions that comply to respective local law and regulations.

You, as a purchaser of Abrites hardware products, are entitled of a two-year warranty. If the hardware product you have purchased has been properly connected, and used according to its respective instructions, it should function correctly. In case the product does not function as expected, you are able to claim warranty within the stated terms. Abrites Ltd. is entitled to require evidence of the defect or malfunction, upon which the decision to repair or substitute the product shall be made.

There are certain conditions, upon which the warranty cannot be applied. The warranty shall not apply to damages and defects caused by natural disaster, misuse, improper use, unusual use, negligence, failure to observe the instructions for use issued by Abrites, modifications of the device, repair works performed by unauthorized persons. For example, when the damage of the hardware has occurred due to incompatible electricity supply, mechanical or water damage, as well as fire, flood or thunder storm, the warranty does not apply.

Each warranty claim is inspected individually by our team and the decision is based upon thorough case consideration.

Read the full hardware warranty terms on our website.































Copyright:

• All material herein is Copyrighted ©2005-2021 Abrites, Ltd.

• Abrites software, hardware, and firmware are also copyrighted
• Users are given permission to copy any part of this manual provided that the copy is used with Abrites products and the “Copyright © Abrites, Ltd.” statement remains on all copies
• “Abrites” as used in this manual synonymous with “Abrites, Ltd.” And all it’s affiliates
• The “Abrites” logo is a registered trademark of Abrites, Ltd.

Notices:

• The information contained in this document is subject to change without prior notice. Abrites shall not be held liable for technical/editorial errors, or omissions herein.
• Warranties for Abrites products and services are set forth in the express written warranty statements accompanying the product. Nothing herein should be construed as constituting any additional warranty.
• Abrites assumes no responsibility for any damage resulting from the use, misuse, or negligent use of the hardware or any software application.

The Abrites products are to be used by trained and experienced users in diagnostics and reprogramming of vehicles and equipment. The user is assumed to have a good understanding of vehicle electronic systems, as well as potential hazards while working around vehicles. There are numerous safety situations that cannot be foreseen, thus we recommend that the user read and follow all safety messages in the available manual, on all equipment they use, including vehicle manuals, as well as internal shop documents and operating procedures.

Some important points:

Block all wheels of the vehicle when testing. Be cautious when working around electricity.

• Do not ignore the risk of shock from vehicle and building-level voltages.
• Do not smoke, or allow sparks/flame near any part of the vehicle fuel system or batteries.
• Always work in an adequately ventilated area, vehicle exhaust fumes should be directed towards the exit of the shop.
• Do not use this product where fuel, fuel vapours, or other combustibles could ignite.

In case any technical difficulties occur, please contact the

Abrites Support Team by email at support@abrites.com.













1. Introduction

1.1 Scope of the manual

1.2 System requirements

1.3 Your AVDI package

2. Getting Started

2.1 Software installation steps

3.1 ZN030 ABPROG Programmer

3.2 ZN003 PROTAG

3. Quick Start

3.1 Interface preparation and connection to the PC

4. Using AVDI with a virtual machine (VM)

4.1 Install AVDI software on the VM

4.2 Connect AVDI to the VM

4.3 Shut down the VM

4.4 Set latency timer

4.5 Working with J1850 adapter

5. TROUBLESHOOTING

5.1 abrites.exe - System Error

5.2 Windows Error

5.3 Windows 7 problem

5.4 LATENCY TIMER – PROBLEM

5.5 Internet Synchronization (Hardware Update)













5.6 Graphic problem using the online software

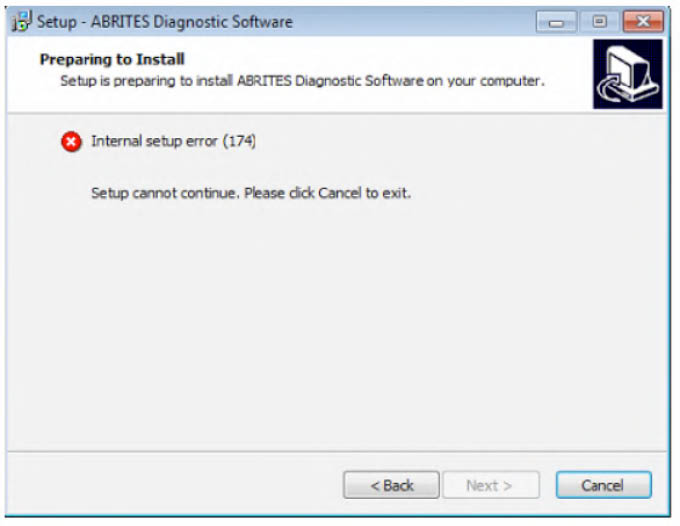

5.7 Internal setup error (174)

5.8 Error code: 0x17022

5.8 Connection Error: Interface not connected

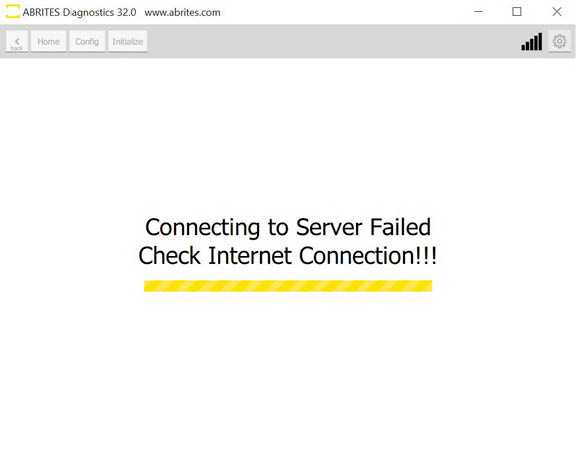

5.9 Connecting to Server Failed. Check Internet Connection!!!

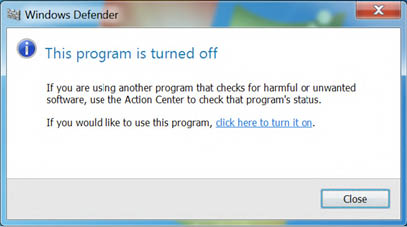

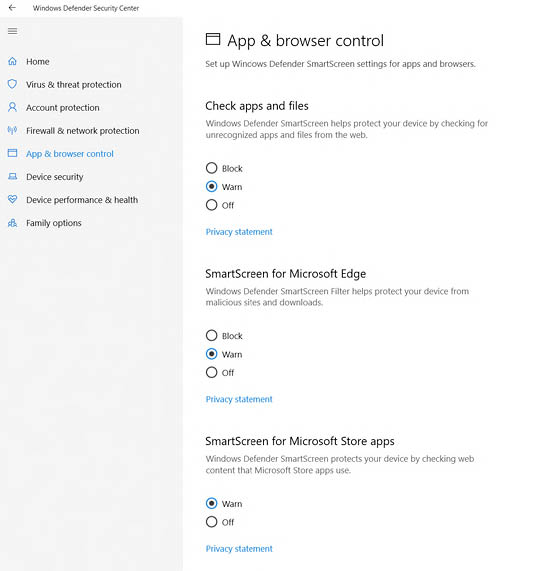

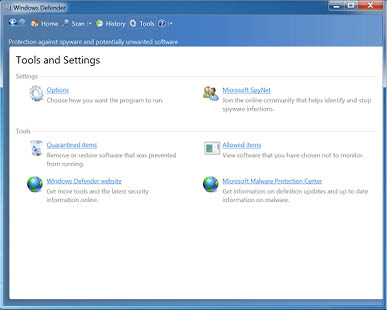

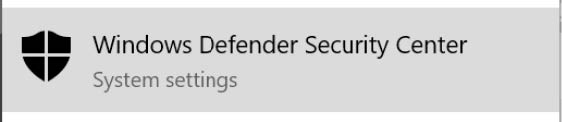

5.10 AVDI Installation Windows Defender Smart Screen Problem

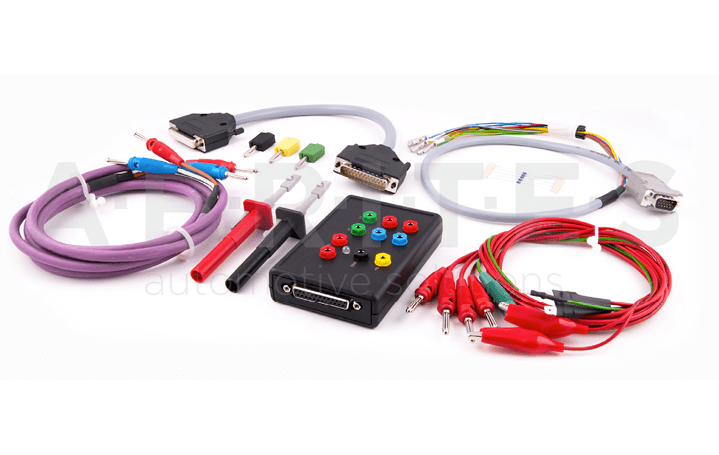

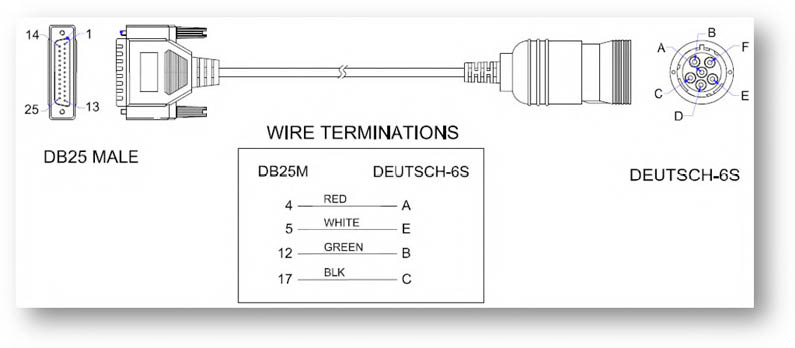

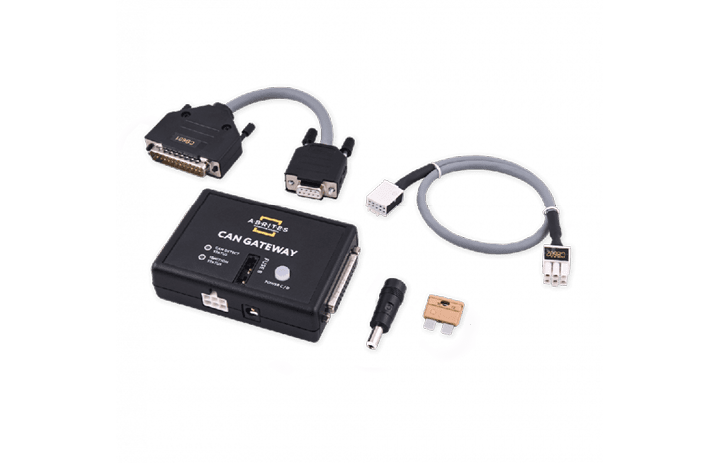

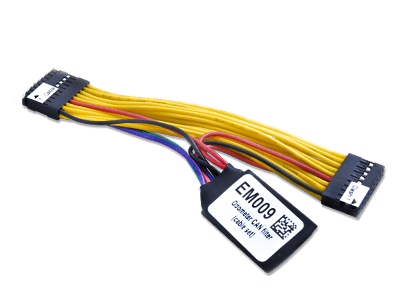

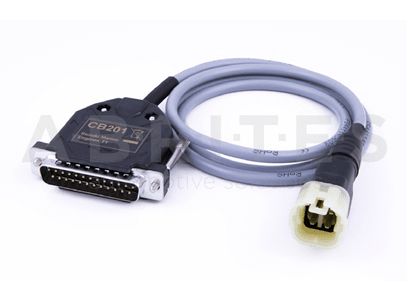

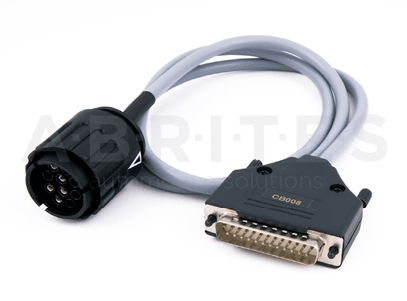

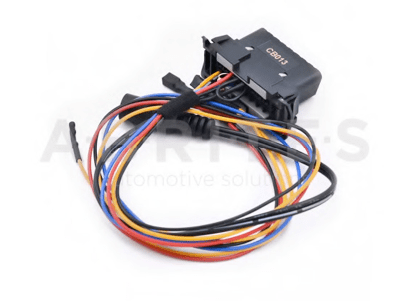

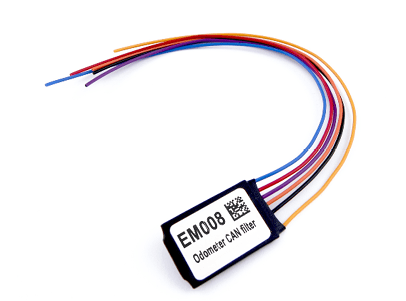

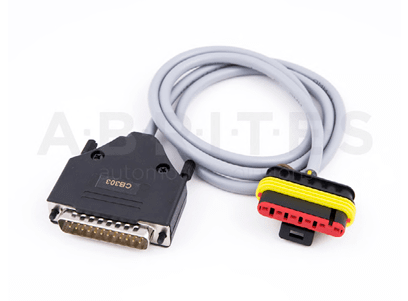

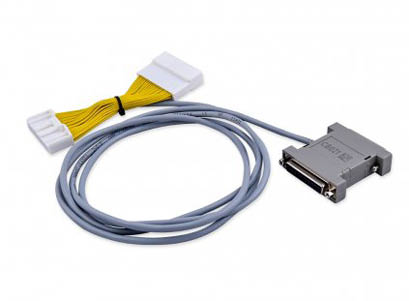

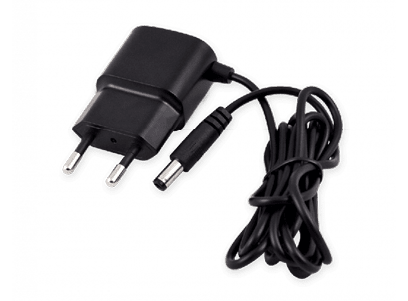

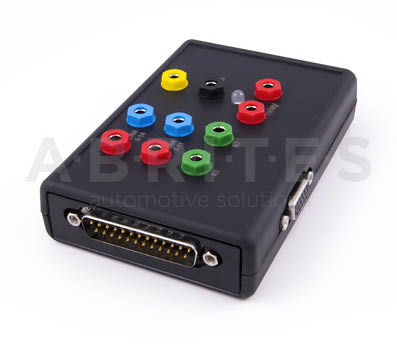

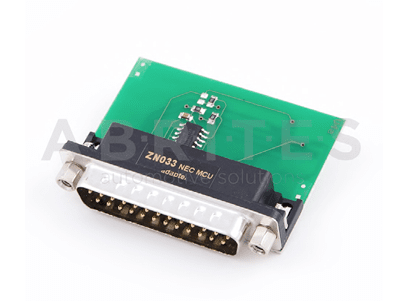

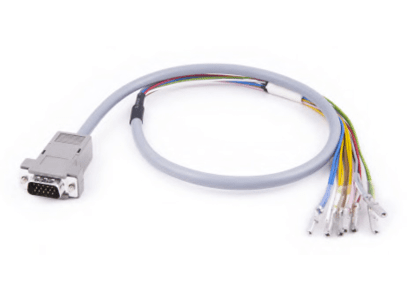

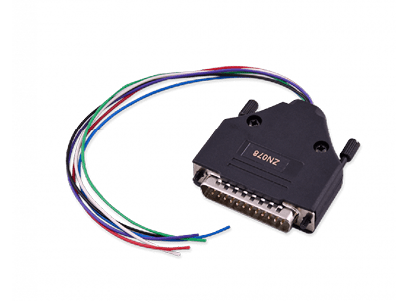

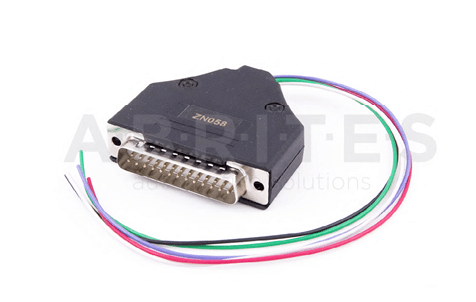

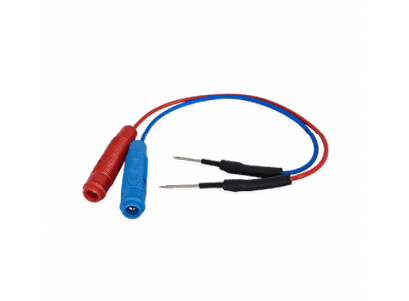

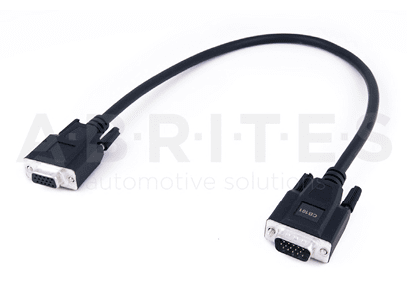

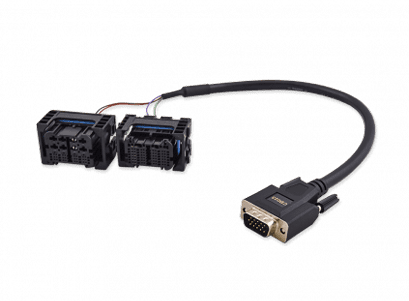

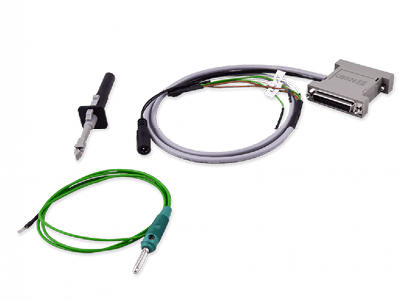

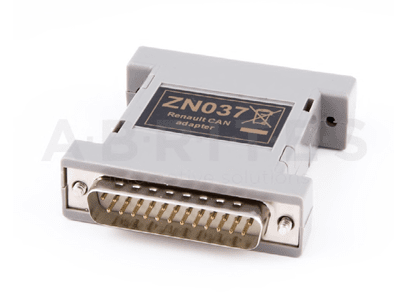

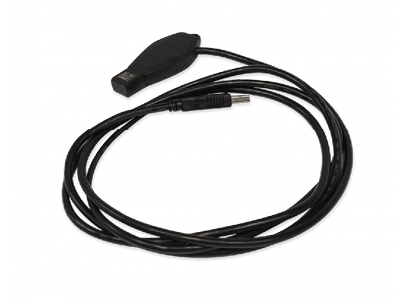

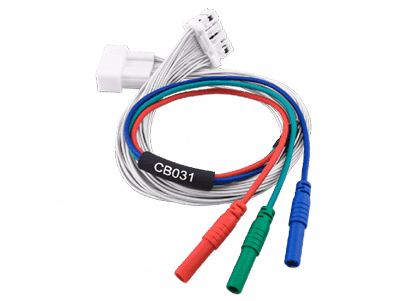

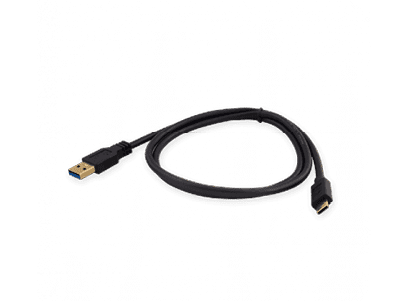

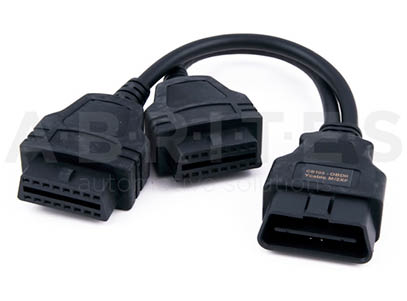

6. Additional cables and products

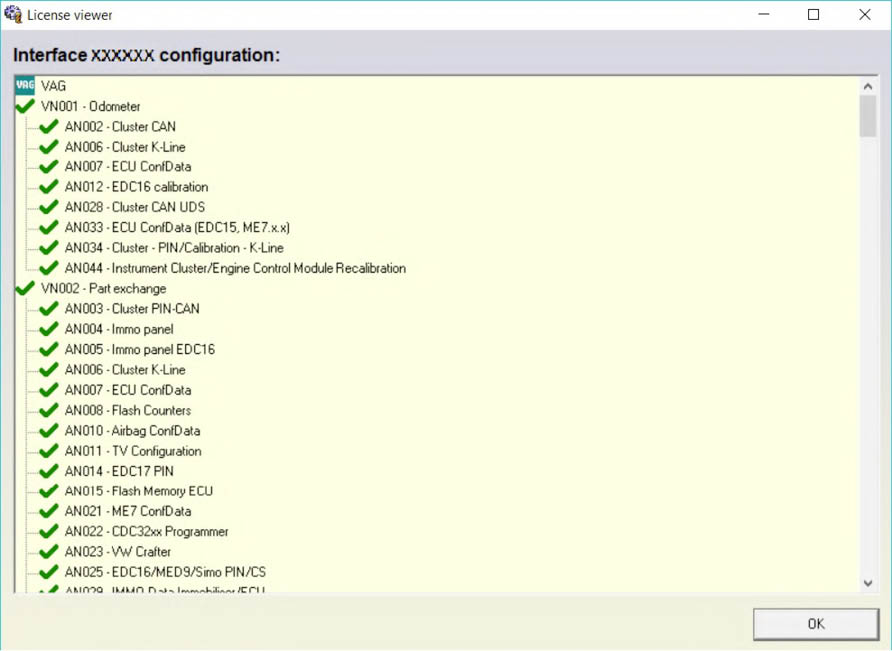

7. License viewer

8. Functionalities of the Basic AVDI software package













Congratulations on choosing our product!

AVDI will allow you to use your Windows based PC as a powerful diagnostic tool for cars, trucks, bikes, marine equipment and recreational products. AVDI is an interface produced by Abrites Ltd. intended for interface between a PC and electronic control units. AVDI should be used with ABRITES software produced by Abrites Ltd. ABRITES is a trade mark of Abrites Ltd.

1.1 Scope of the manual



This document describes the software and hardware installation of your AVDI diagnostics interface.

The document is applicable for the interfaces numbered 17xxxx (or 16xxxx) where xxxx is a hexadecimal number between 0000 and FFFF.

1.2 System requirements

Minimum system requirements – Windows 10 or above

























i18 AVDI - Abrites Vehicle

Diagnostics Interface

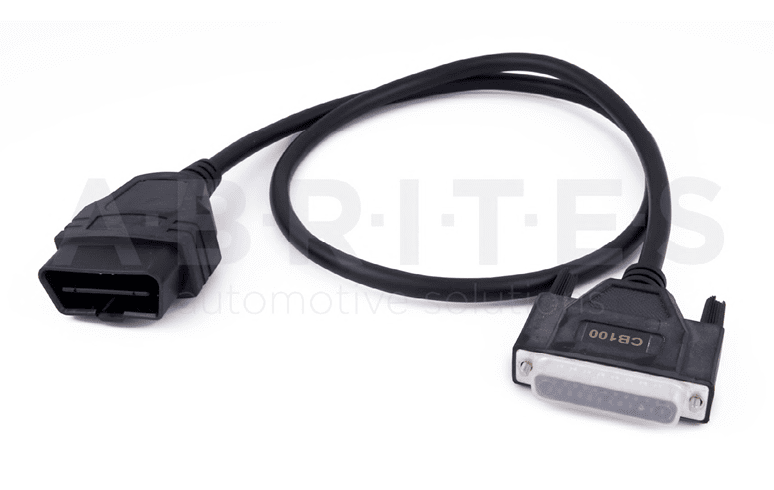

CB106 - Abrites OBDII cable (SAE J1962)

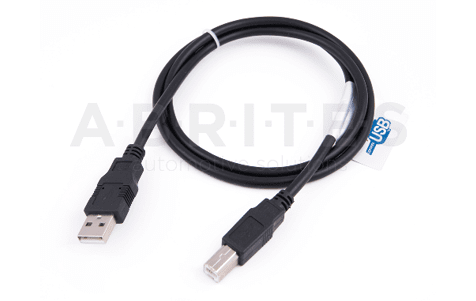

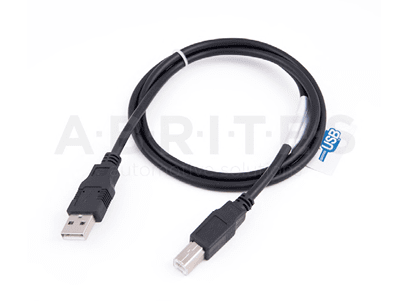

CB104 - USB A-B Cable

Used to connect the AVDI to the PC

Used to connect the AVDI to the vehicle

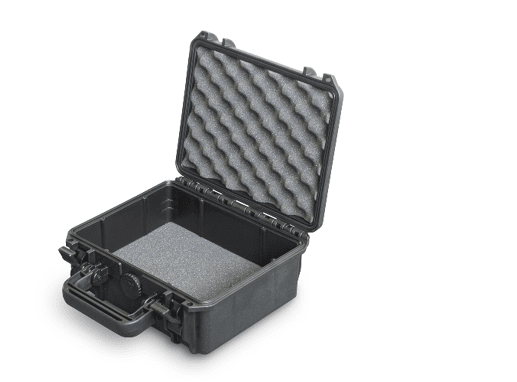

1.3 Your AVDI package

The basic package of AVDI interface contains:





























Software for your AVDI interface can be delivered by email. Please make sure that you

follow the steps described below.

Software is represented by windows executable files named.

“SetupInterface_17xxxx.exe”

(or 16xxxx.exe)

“SetupInterface_Common.exe” and three more downloadable parts of the common file:

“SetupInterface_Common-1.bin“

“SetupInterface_Common-2.bin“

“SetupInterface_17xxxx_PASSTHRU.exe” (or 16xxxx) where 17xxxx (or 16xxxx) is your interface identification number























2.1 Software installation steps

Please follow the bellow given instructions when installing the software for your AVDI interface.

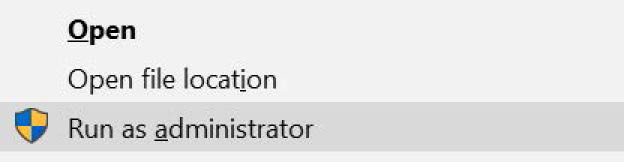

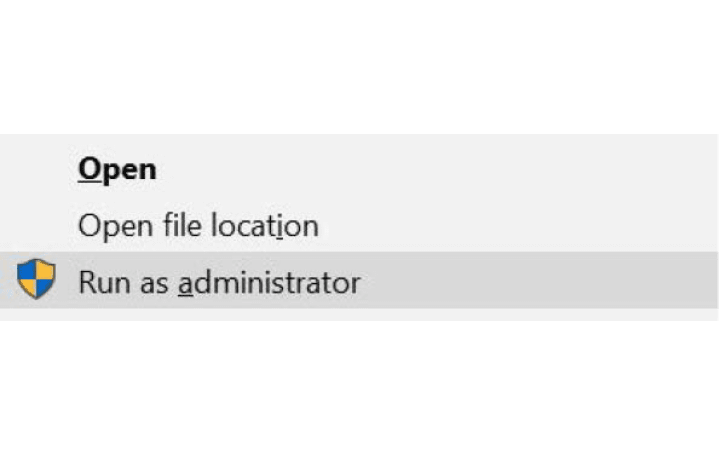

Important! All executable files (.exe) mentioned above must be executed consequently(1,2,3) for the installation to be complete.

Otherwise the software might not function as expected!

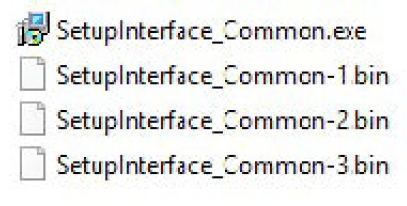

Step 1. Download all the parts of the common setup files in one folder.

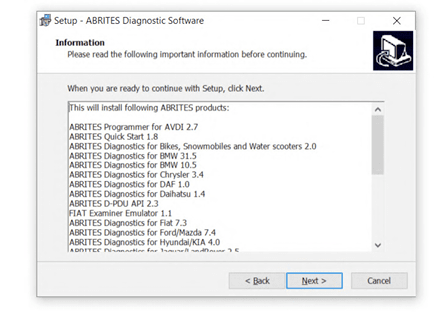

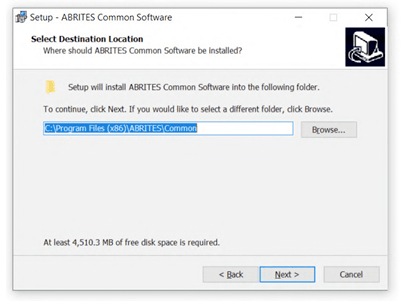

Start the executable file “SetupInterface_Common.exe” and follow the on-screen instructions.

Press the “Next” button to proceed with the

installation.

IMPORTANT! Make sure that they are all downloaded in the SAME folder and their names are EXACTLY as they are named on the image above. If you have “SetupInterface_Common-1 (1) or (2)”, as Windows would name them if you have two files with the same name, the installation WILL NOT be completed.























Press ‘Install’ and wait for the installation to complete.



















Step 2.

Please, start the executable file ‘SetupInterface_17xxxx.exe’ (or 16xxxx.exe) to initiate the installation procedure and follow the on-screen instructions.

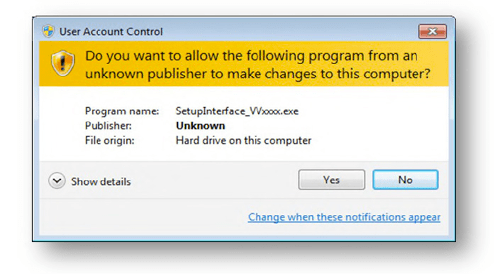

Depending on your operational system and settings you may be asked to confirm the start of the installation procedure or to type in your administrative credentials.

Press the “Next” button to proceed with the installation.

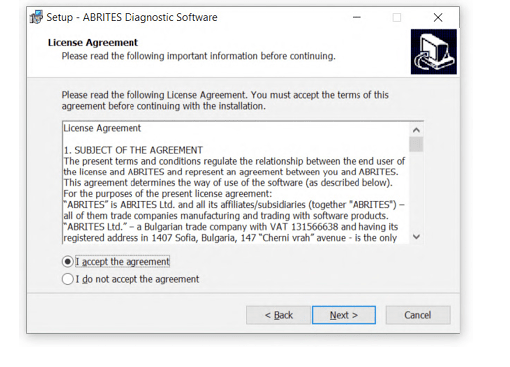

Read the license agreement carefully and select “I accept the agreement” if you accept it. Then press the “Next” button.

If you do not agree press the “Cancel” button to interrupt the installation procedure.

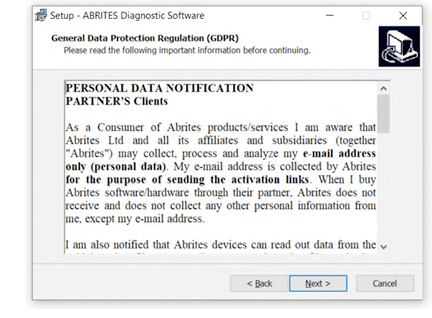

Read the General Data Protection Regulation (GDPR) and press the “Next” button.

If you do not agree press the “Cancel” button

to interrupt the installation procedure.

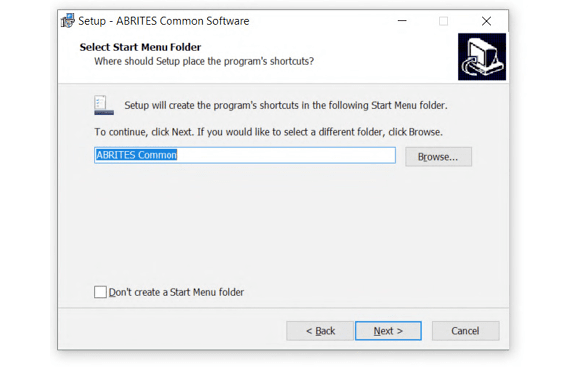

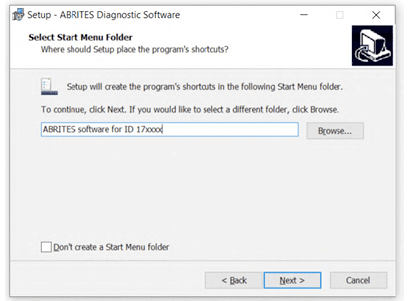

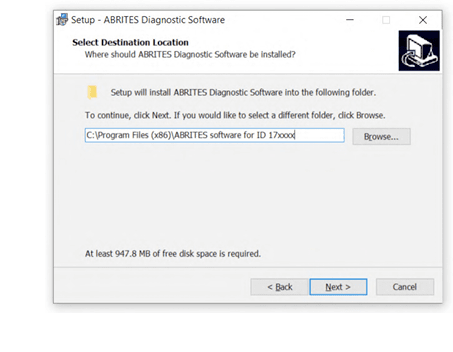

Press the “Next” button to proceed with the installation.

Press the “Next” button to proceed with the installation.





























Press the “Next” button to proceed with the installation.

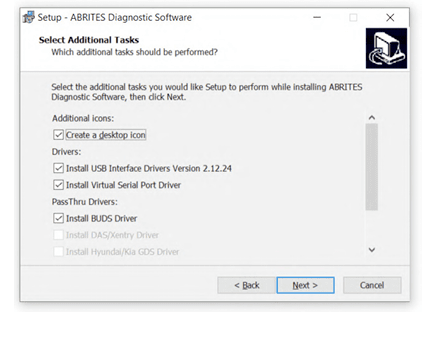

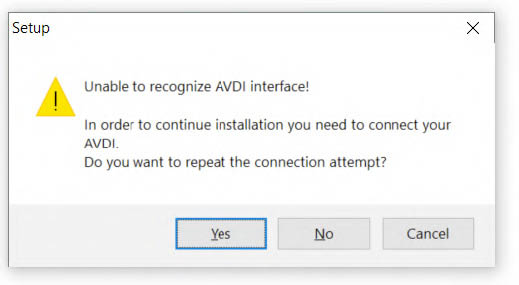

If you do not have your AVDI connected to the PC during the installation you will see this message. Connect your AVDI and press “Yes”.

If you do not want desktop icons – uncheck the check box about the creation of these icons. Press the “Next” button to proceed.















When the installation is completed the wizard will create an “Abrites Quick Start for ID17xxxx (or 16xxxx) desktop icon.

New generation Abrites Online Diagnostics for BMW/Mini, Renault/Dacia/Samsung, Honda, Mercedes-Benz, Mitsubishi, Nissan/Infinity, Rolls Royce, Subaru, Ford/Mazda, PSA, Hyundai/KIA, VAG

During the half of 2014 Abrites ltd. released a new generation of Online diagnostic software.

The Software is currently distributed together with the older platform. The new generation software (versions 31.5 and later) requires Internet access due to the large calculations performed by the Abrites server instead of the user’s computer.















When new updates are available the Abrites software has to be run as administrator.

If more than one component need to be downloaded the software has to be run it one more time as administrator. Right click on the Abrites Quick Start icon on your desktop and select “Run as administrator”.















As soon as the interface is recognized and all updates are installed the list of available models will be displayed.

Please, be informed that the installation includes a copy of the user’s manual to which you could refer at any time. It is stored in the following location:

Start menu -> Program Files -> ABRITES -> Common -> AVDI Common User’s Manual

You could use the interface for any given diagnostics by going to the following location:

Start -> Program files -> ABRITES software for ID17xxxx(or ID16xxxx) -> choose one of the folders named by brand or open the “ABRITES Quick Start.exe” file.

















3.1 ZN030 ABPROG Programmer

You could access the ABPROG Programmer for AVDI by going to the following location:

Start -> Programs -> ABRITES software for IDxxxxxx -> ABPROG -> ABPROG.exe.

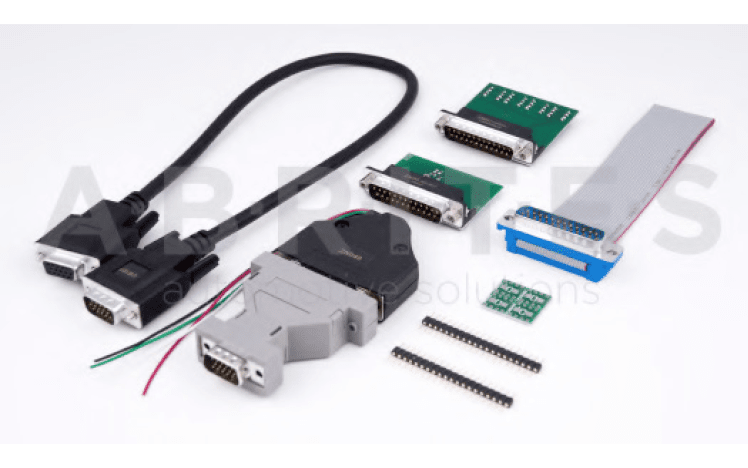

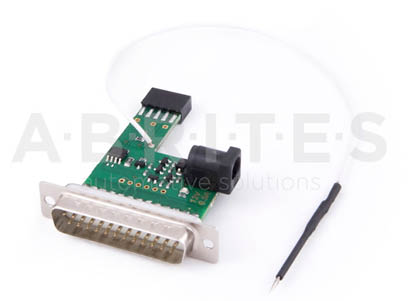

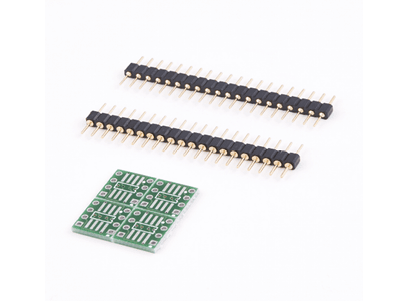

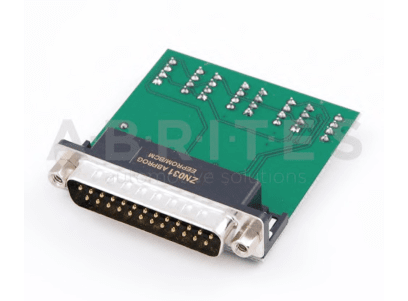

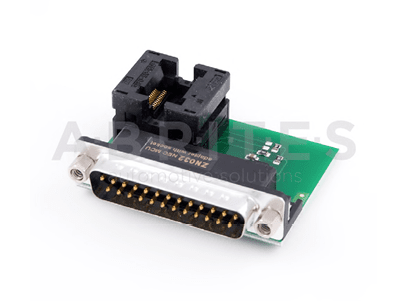

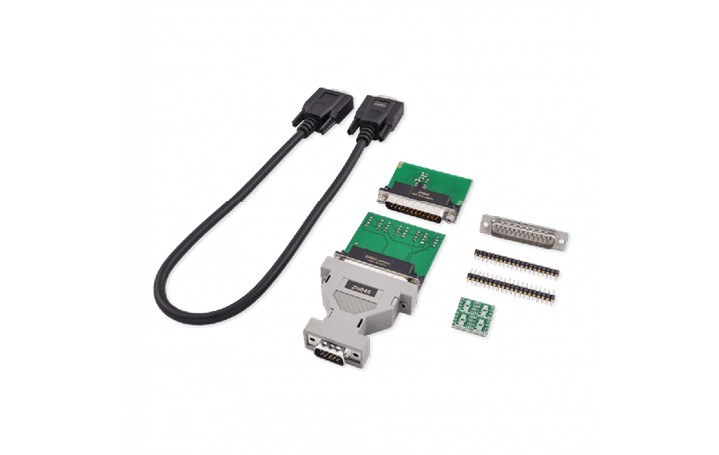

ZN030-ABPROG + ZN031-M35XXX/SPI/I2C Adapter +

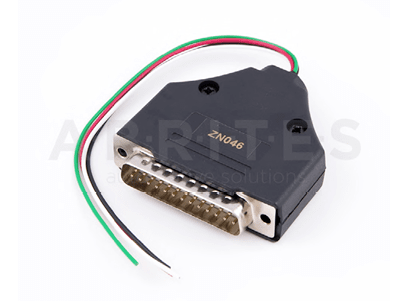

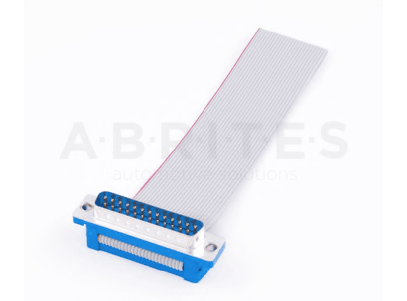

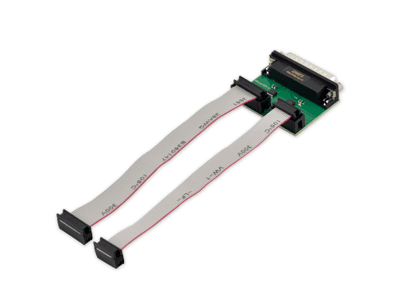

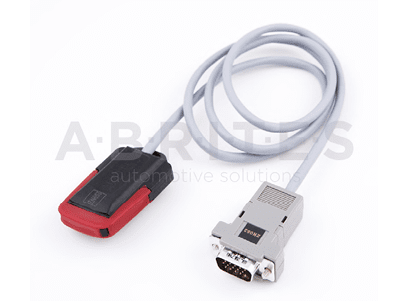

ZN046 (key renewal adapter for Hitag 2 keys) + ZN034 (ABPROG flat cable) together with Abrites EEPROM Programmer software allow you to erase and write SPI EEPROM memory with and without incremental registers.

A detailed user manual is included in the following directory:

Start menu -> Program Files -> ABRITES -> Common -> ABPROG



















You could access the PROTAG programmer software by going to

the following location:

Start -> Programs -> ABRITES software for IDxxxxxx -> TagKeyTool

-> ABRITES Tag Key Tool.exe

A detailed user manual is included in the following directory:

Start menu -> Program Files -> ABRITES -> Common -> Tag -> Tag Key Tool Common User’s Manual

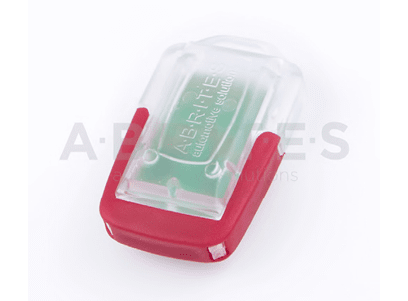

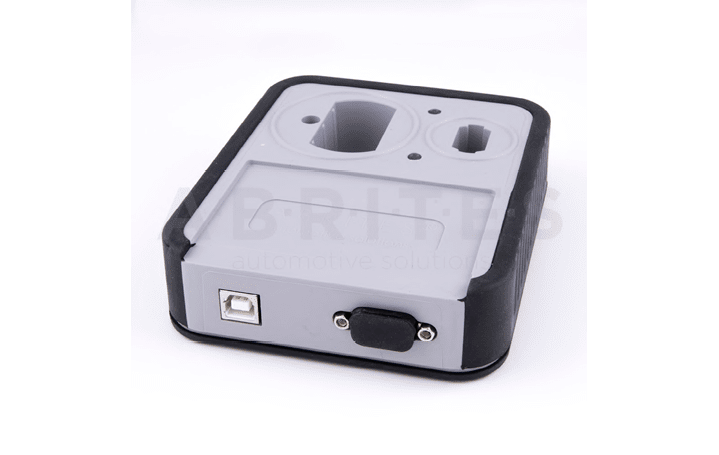

3.2 ZN003 PROTAG

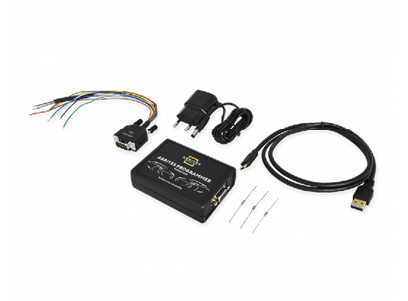

The new generation Abrites PROTAG Programmer is the latest upgrade to our powerful key programming tool! The ZN003 contains the full functionality of the ZN002 and expands its capabilities.

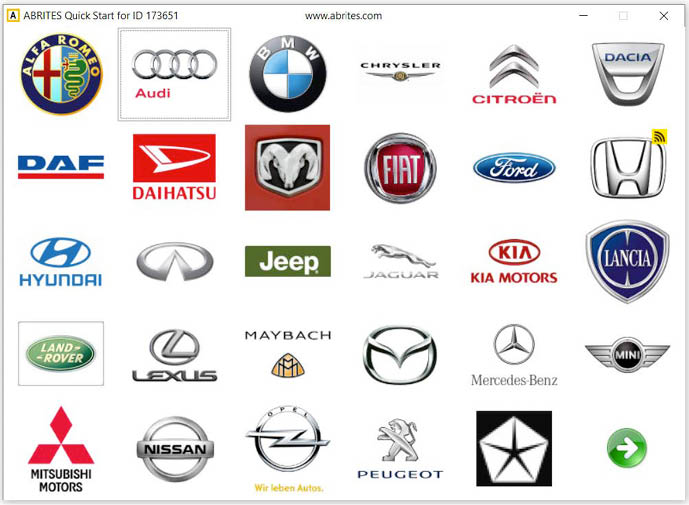

The Abrites Quick Start for IDxxxxxx where ‘’xxxxxx” is the ID of your AVDI is a simplified user interface which allows you to start working with the AVDI in a much quicker manner.

After the installation is complete you should have a Quick start icon on your desktop as well as a start menu shortcut.

3.1 Interface preparation and connection to the PC

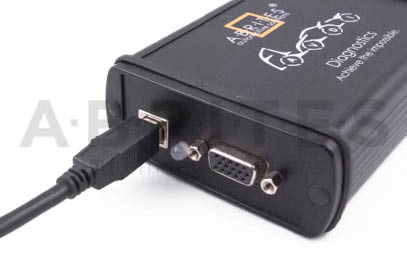

Connect the USB cable from the AVDI package to the interface.

Connect one of your diagnostic cables (OBDII, Deutsch etc.) to the interface

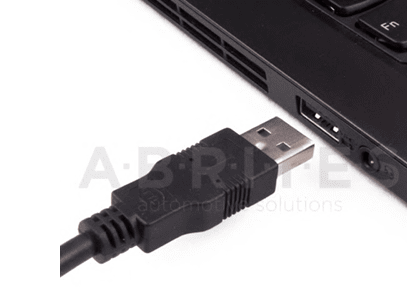

Connect the main USB connector(CB104) to your PC

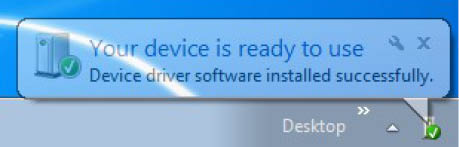

If you are connecting the interface to your USB port for the first time wait until Windows notifies you that the drivers are installed successfully. Please, take into account that if you reconnect the interface to another USB port of your PC for the first time you might need to wait again until Windows confirms your successful installation.

You are ready to run some of the diagnostics.

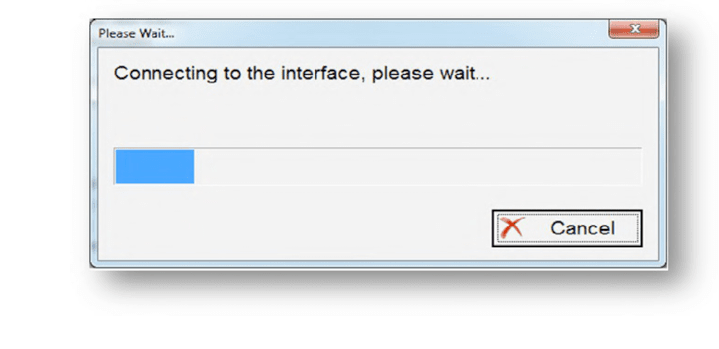

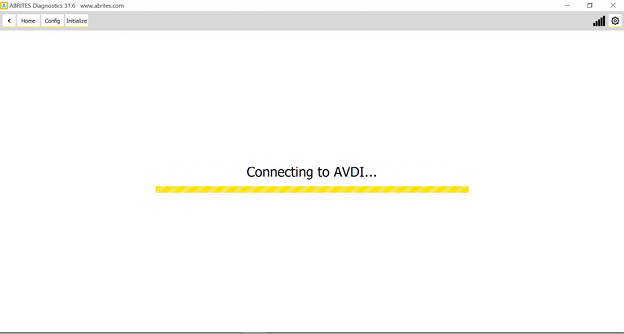

When you start a

diagnostics you should

see this:

This means that

the connection to

the interface is OK:

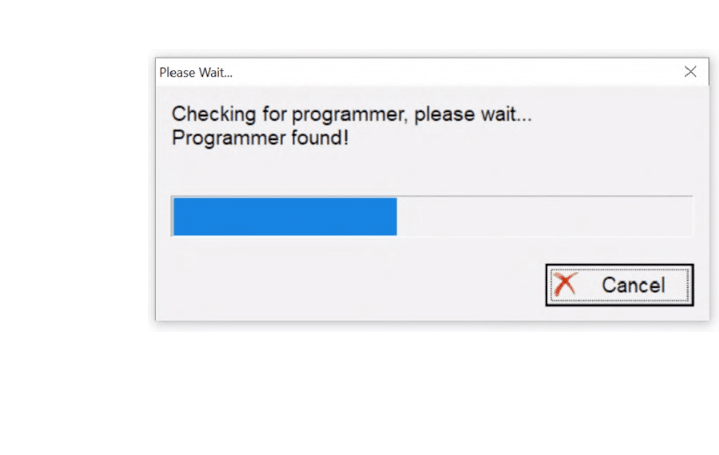

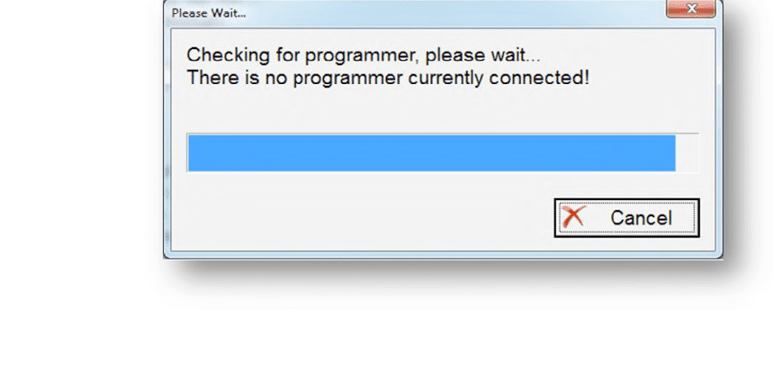

The software checks for connected

PROTAG programmer:

If you HAVE connected the PROTAG programmer you should see this message that the PROTAG programmer is successfully recognized and you can start working:



















If you like to use your AVDI interface (software ) with a virtual machine here are some preliminaries that should be made.

4.1 Install AVDI software on the VM

After you have loaded and played the VM on which you would like to use your AVDI interface, please install the ABRITES Software for the AVDI interface which you want to use on the VM. This is done exactly as the installation on your host PC (see 2.1 Software installation steps).

Be sure that the checkbox about the installation of the interface’s USB drivers is set, especially if you are installing the Abrites Diagnostic Software for the first time on this machine.

Wait for the drivers to be installed.













4.2 Connect AVDI to the VM

After the ABRITES Software is installed on the VM and you have connected the AVDI interface to an USB port of your PC you should redirect this port to the VM, otherwise you cannot use the AVDI interface on the VM!

This can be done in the following way (example with VMware):

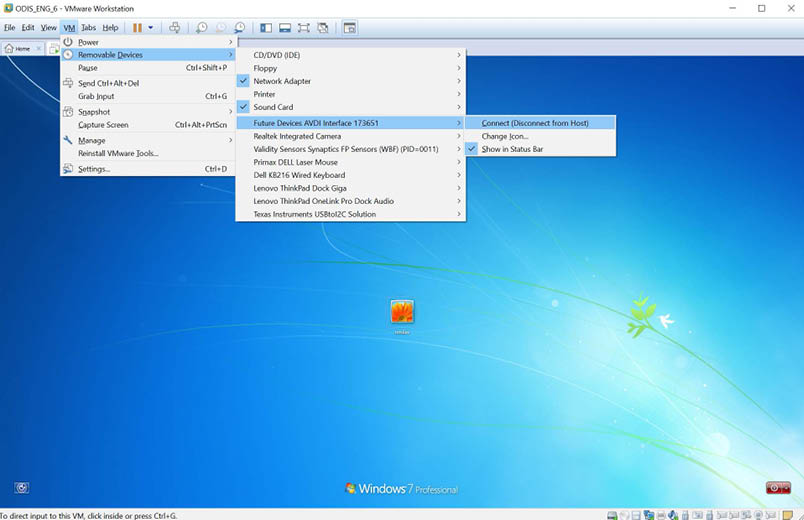

From the main menu of the VMware player, select “Virtual Machine” → “Removable devices” →

“Future devices avdi interface 17xxxx(or 16xxxx)” → “Connect (Disconnect from host)”.

Here 17xxxx(or 16xxxx) is your interface identification number.

You will be shown a message informing you that the USB device will be unplugged from the host machine and connected to the virtual machine.

If you like to disconnect the AVDI interface from the VM (so you can use it on the host PC) you can either close the VM Player or do it through the VMWare menu “Virtual Machine” → “Removable devices” → “future devices avdi interface Vvxxx” → “Disconnect (Connect to host)”.



















4.3 Shut down the VM

After you have finished working with the Virtual Machine you should perform “Shut down” of the Operating System. This applies also when using the J2534 Passthru driver on Virtual Machines.

4.4 Set latency timer

Another prerequisite before you start using the AVDI interface on the VM is to set the latency timer of the COM port where the AVDI interface is recognized to 1ms.

This can be done in the following way:

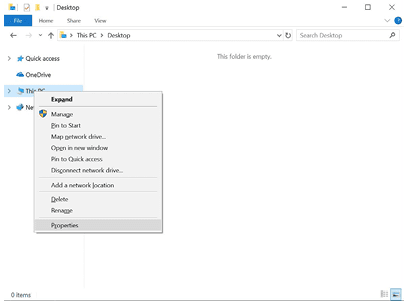

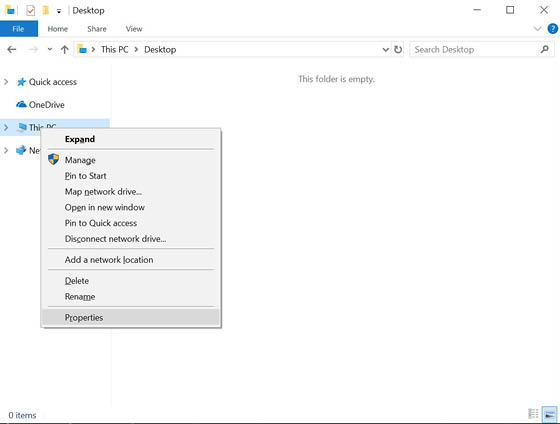

Open Windows Explorer then right click on “This PC” (“My computer”) and select

“Properties”.

From the “System properties” window select

“Device manager”.

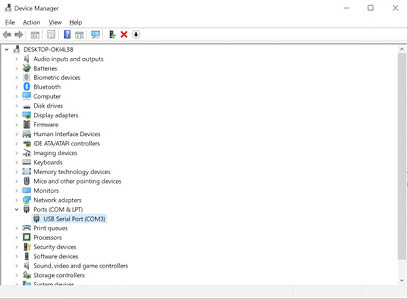

In the opened window select “Ports (COM & LPT)”. Your AVDI will appear in the list as “USB Serial Port (COM xx)” where “xx” can be different number. Double click on it.

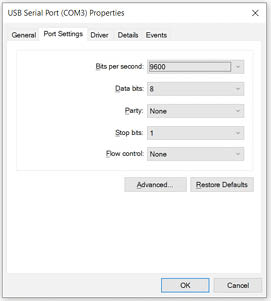

From the screen select “Port settings” and then press “Advanced”.

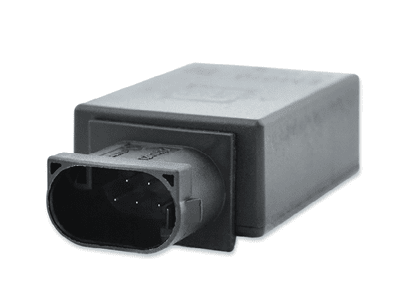

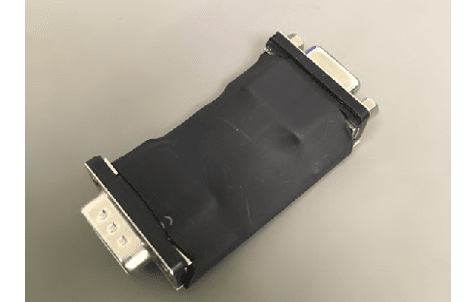

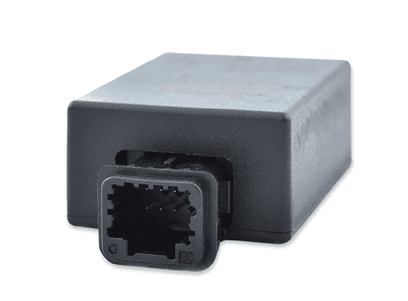

4.5 Working with J1850 adapter

Abrites J1850 adapter is intended to support SAEJ1850 PW 10.4 kbps and PWM 41.6 kbps protocol

standarts.

Adapter must be connected between AVDI and OBD2 cable using the DB25 sockets.

No additional settings are required.

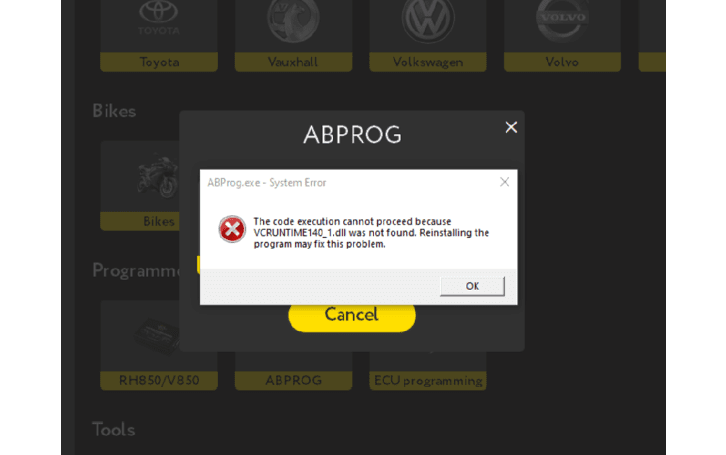

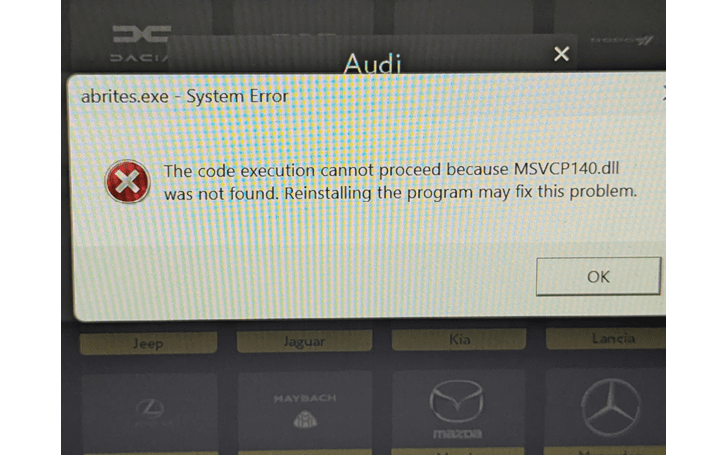

5.1 abrites.exe - System Error

An error like that may occur upon opening an Abrites Online software with a 35.0 or above software version. Please note that this is a Windows connected case, and you need to update your Microsoft Visual C++ Redistributable.

Examples:

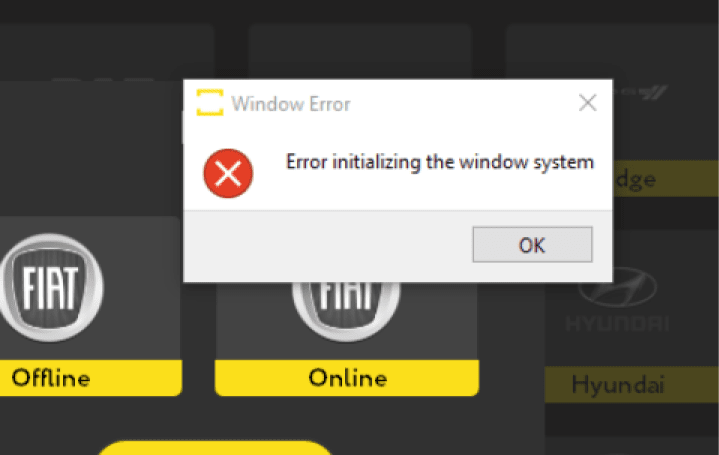

5.2 Windows Error

In some specific cases when updating Abrites software, after setup installation and then the Passthru installation you may face the following error:

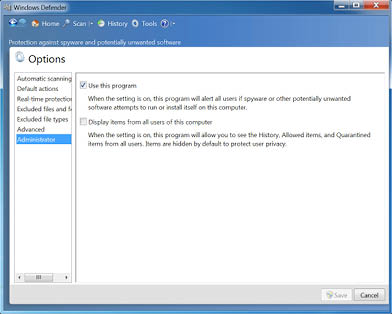

5.3 Windows 7 problem

Windows 7 Operation System is not supported by Microsoft for many years now, and this reflects on its behavior with other software applications, such as the Abrites software. The latest software version of the Online platform, which works smoothly with Windows 7 is the 34.9 version. Software versions 35.0 and above would require you to update your Windows operation system to a version that is supported by Microsoft. You can check the supported versions on the Microsoft website.

We have a partial solution for customers, who still want to use the Abrites products on the Windows 7 platform, but this has some limitations. You will be able to use the 34.9 version of the Abrites Online software, and you will not be able to benefit from any updates.

Having in mind the limitations, you can install additional application, which will install the 34.9 version on you computer, and will not let any updates go trough - thus, you can use all the functionalities available before the release of 35.0 software versions.

Please use the link HERE

















5.4 LATENCY TIMER – PROBLEM

Sometimes depending on the user rights in Windows you may see the following message:





























In the opened window select “Ports (COM & LPT)”.

Your AVDI will appear in the list as “USB Serial Port (COM xx)” where “xx” can be different number. Double click on it.

From the screen select “Port settings” and then press “Advanced”.

Make sure “Latency timer” is set to 1.

Please, note that if you connect your AVDI to a different USB port you should do these steps again.



















5.5 Internet Synchronization (Hardware Update)

The latest AVDI Diagnostics update introduced a mandatory update of the hardware over Internet. This update is regular and should be performed at least once a month.

If the Internet update is not performed, the hardware will have limited functionality and will be not able to connect to vehicles until it is activated.

Please note that performing the Internet update is an essential initial step. For many of the functionalities of your AVDI you will not require to have an Internet connection to your computer but it is recommended to have your computer constantly connected to the Internet, especially when you are using a function which requires Internet connection or when you are using one of the Online software.

The procedure for performing the AVDI Internet update is as follows:

1. Download and install the latest AVDI Diagnostics update and start the Abrites diagnostics.

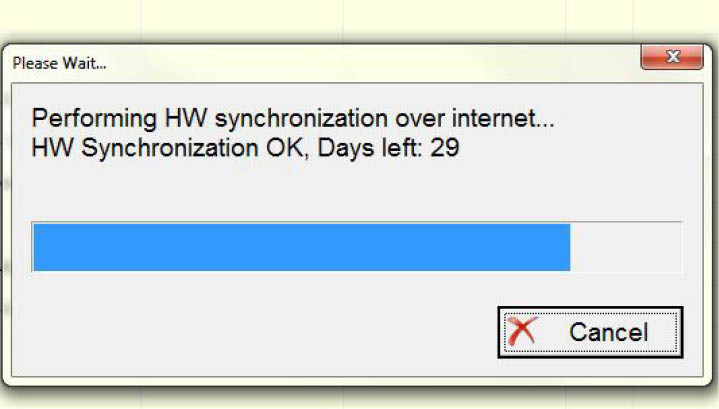

2. This Internet update is performed automatically once the AVDI Diagnostics software is started. It is indicated by the message “Performing Internet activation...”.

3. If the Internet activation is successful, the next time you start the diagnostic software, the message “Performing Internet activation...” should be not shown.

IMPORTANT: If the message “Performing Internet activation...” is not displayed the time you start the application, your hardware is ready for use. The Internet update will expire in one month when you will need to reconnect your computer to the Internet and make sure your interface performs the update when you start your Abrites diagnostic software.

4. If the message “Performing Internet activation...” continues to be shown the Internet update was not successful and the possible reasons for this issue might be:

• No Internet connection to the computer you are installing your software on. In that case please allow the connection of this computer to the Internet.
• The date on your computer is Incorrect. In that case please set the time and date on your computer to the current time and date at your location.

NOTE: Due to the time zone after running the latest SW update for the first time, the Internet pdate might not be successful in the first 1-2hours.

Effects if the Internet update is not performed:

• The AVDI hardware is recognized OK, but no connection to the vehicle is possible.
• Some diagnostic software might crash if you try to connect to the car.
• The update MUST be performed periodically (every 30 days) in order for your AVDI to always work properly and not experience any of the symptoms above.













Make sure to connect your AVDI and allow it to perform its Internet update every 30 days.

In case the procedure does not go as planned and you encounter an issue different to the ones above please contact support@abrites.com with a detailed description of the steps you took and their effect.

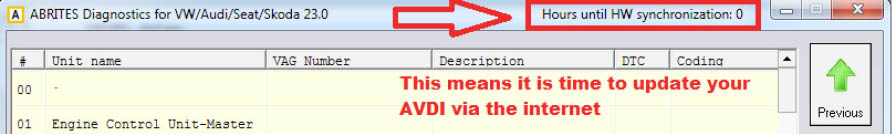

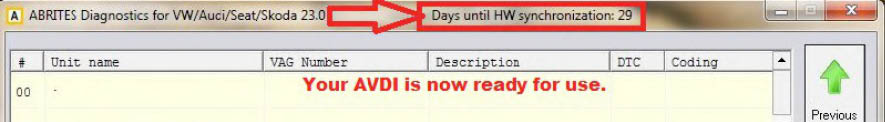

Upon starting the Abrites diagnostics software in the top right hand side of the screen you will see how many days (or hours) you have until the next synchronization. In case you see the following message you will need to perform the Online update of your hardware.

• Then perform the following steps (After making sure that you have a stable Internet connection):

1. Start your Abrites diagnostic software(for example you can use the Abrites diagnostics for Audi)

















This means that your AVDI communicates with the Abrites secure server and the online synchronization is being performed.

3. Once the synchronization is over you will see the following message when opening the Abrites diagnostic software:

















This graphic issue could happen when you are using one of the Abrites Online software such as BMW2. Here is the solution:

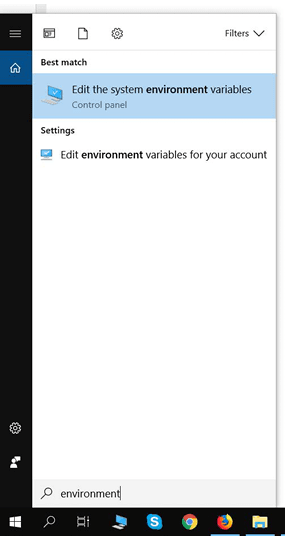

Type “environment “ in the

Windows search menu.

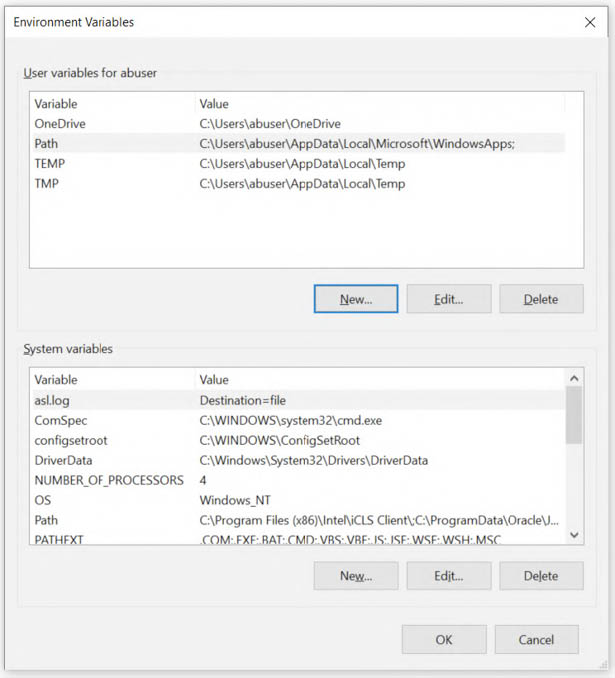

Go to the “Advanced” tab and select

“Environment Variables”















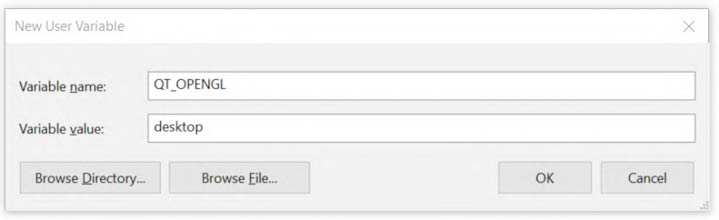

Create a new variable named “QT_OPENGL” with value “desktop” (change it with “angle” or “software” if “desktop” does not solve the graphic issue) and press “OK”. Restart your PC.

















This error means that during the software build process your links haven’t been built correctly.

The solution would be to generate new software links. You can request them by contacting us at the following e-mail address: support@abrites.com

















The error means that there are two versions of the same software installed on your PC. Uninstall the

Abrites software and reinstall it using the latest links only.

















This error means that your Interface is not recognized. You will need to perform some troubleshooting steps before sending the Interface for repair:

1. Make sure the software is properly installed and LED light of your Interface lights up.

2. Remove all Abrites software and reinstall it from the latest links.

3. Install the latest FTDI drivers:

http://www.ftdichip.com/Drivers/VCP.htm

Next to “Windows*” you will find a setup executable which should be downloaded and then installed on your PC.

4. Disable all anti-virus programs.

5. Try with another USB cable provided by Abrites if available(your PROTAG uses the same USB cable as your AVDI Interface).

6. Try on a different PC.

If that does not resolve the issue your Interface has to be repaired. Please contact us at the following e-mail address: support@abrites.com

















This error means that your Interface cannot connect to the Abrites server. There are a few possible reasons:

1. Your Internet Server Provider (ISP) has blocked some Internet ports which are used for connecting to our server. In that case you have to try connecting using another Internet connection such as 3G/4G.

2. You are running an old version of the Abrites Online software. We keep only the last two software versions and if your software is not up to date you won’t be able to connect to our server and you will receive this error. In that case you have to update your software to the latest software version from the latest links.

E.g., as of Dec 18th the version for all Online software is 32.7, this means you won’t be able to connect to our server if you are running an older version than 32.5.















Go to the Smart screen options(type “app & browser control” in the search menu) and disable the blocking:

After reinstalling make sure to turn it back on in case real harm occurs.

Read more here:

https://www.microsoft.com/en-us/windows/comprehensive-security



5.10 AVDI Installation Windows Defender Smart Screen Problem

How to disable Windows Defender in Windows 10:

If ever during installation you come across any issues with Windows defender and Smart screen we advise you to start the Windows Defender:





































Select “Administrator and uncheck “Use this program” followed by “Save”

After reinstalling make sure to turn it back on in

case real harm occurs. Please type once again

“Windows defender” in the search menu and click “click here to turn it on”

After reinstalling make sure to turn it back on in

case real harm occurs

















































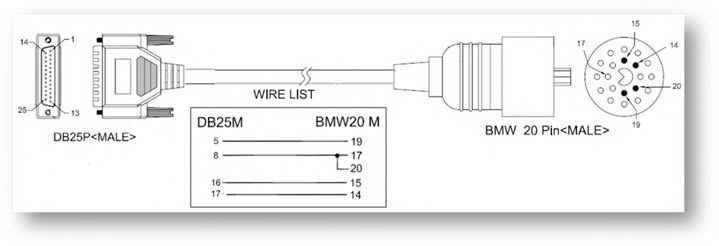

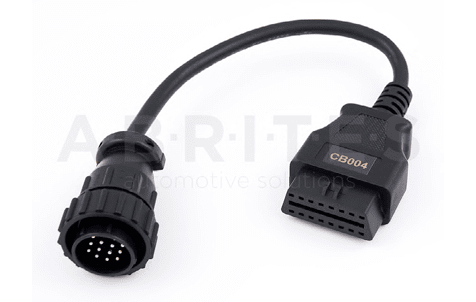

OBDII (F)   14 pin cable

4+5   1

16   3

7  14

15   4

DB25(M)   ESL

5   GND

8   K-line

17   +12V

*This adapter has now evolved into CB026 and is not sold anymore.

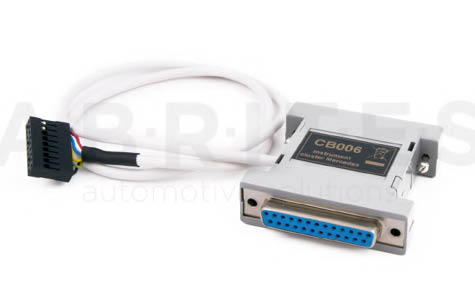

DB25(F)   Dash connector

5   GND ( Dash pin 1)

7   Can Hi (Dash pin 18)

15   Can Lo (Dash pin 17)

17   +12V (Dash pin 4+6)

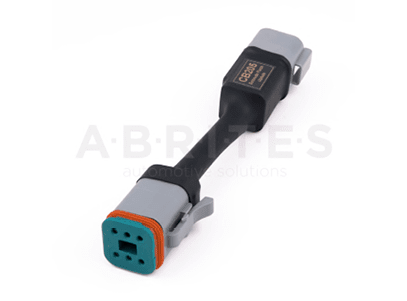

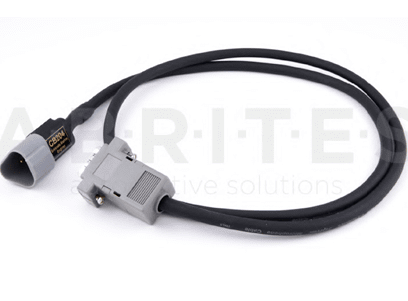

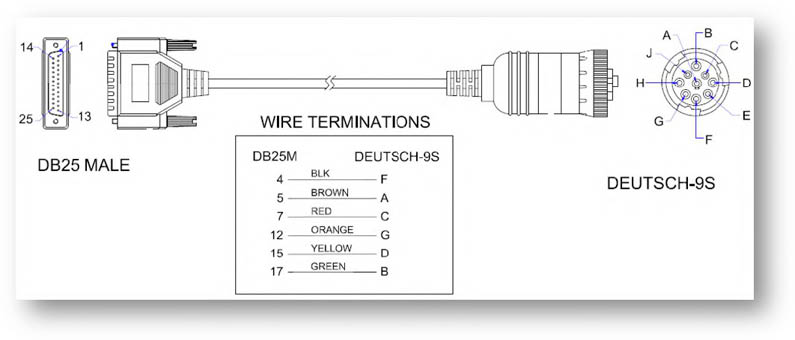

CB009 – AVDI cable for connection

with trucks Deutcsh 6 pin (J1708)

CB008 – Cable for AVDI cable for

BMW bike diagnostic connector

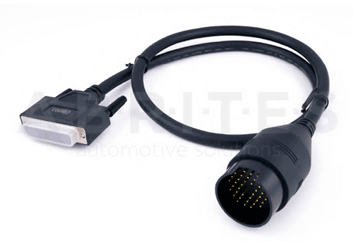

CB010 - Abrites Star connector

for FCA - not sold anymore, now CB019

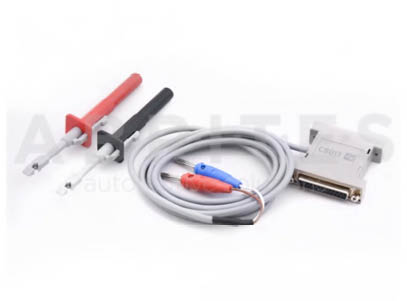

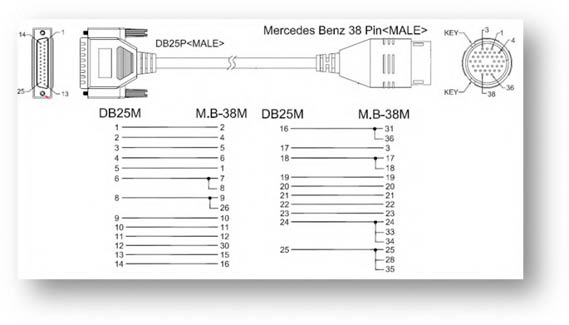

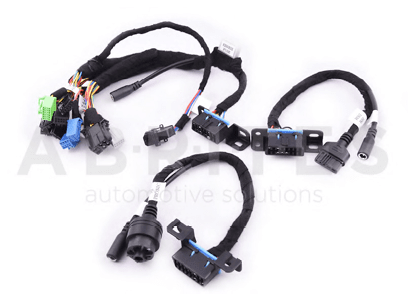

CB011 - ABRITES Mercedes-Benz

cable for EZS, 7G Tronic and ISM/DSM

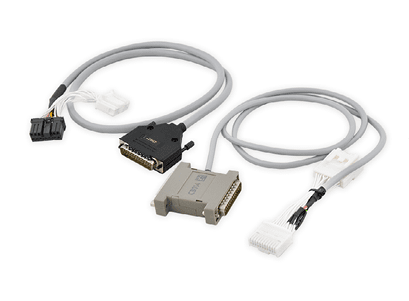

CB012 JLR All Keys Lost cable

set





































CB013 MSD/MSV bench

connection cable set









































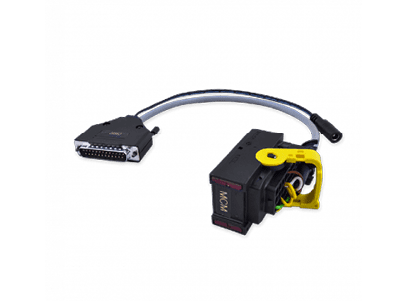

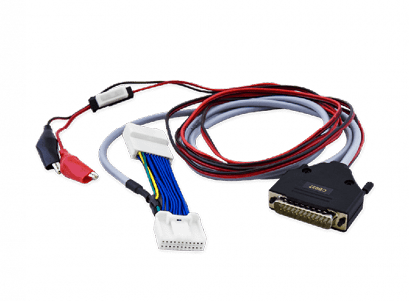

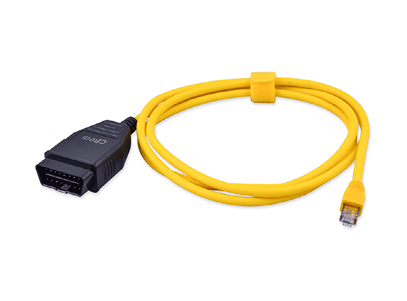

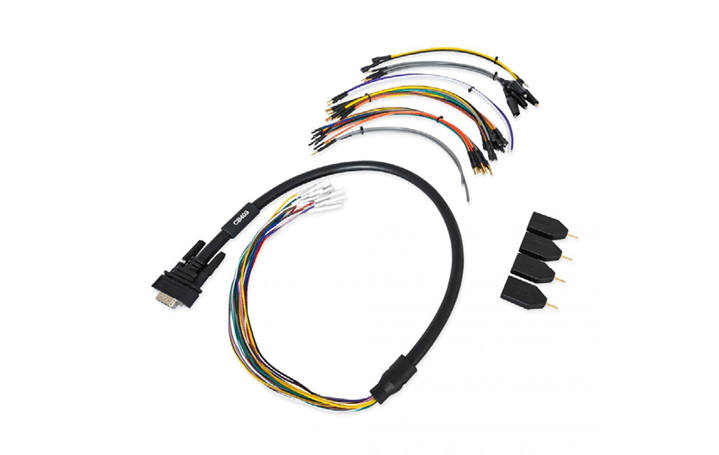

CB023 – BMW MD/MG ECU Connection Cable

CB024 - Mercedes-Benz MD/MG ECU connection cable

CB025 - Extension Cable for DS Box Relay

CB026 - FBS4/FBS3 ELV Connection Cable

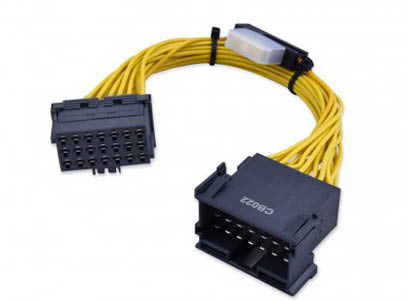

CB027 - Diagnostic cable for Tesla Model 3

It has replaced the CB020 and is part of the ZN087 set







































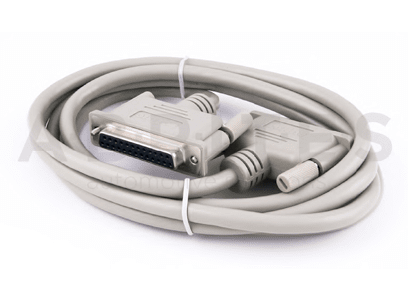

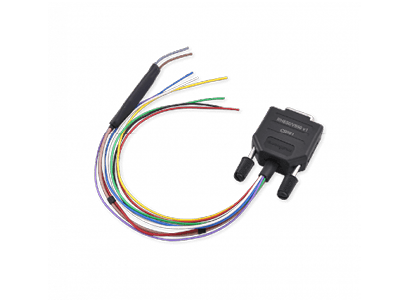

CB101 AVDI extension cable for

ABPROG (ZN030)

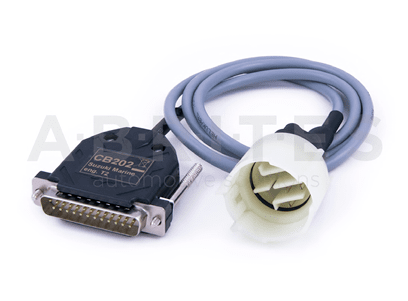

CB202 – AVDI cable for connection with Suzuki Marine Engines type 2 (round)

CB204 AVDI cable for connection with Evinrude Marine Engines

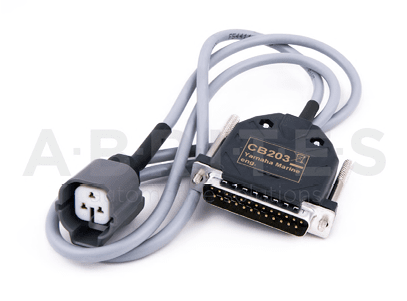

CB203 – AVDI cable for connection with Yamaha Marine Engines



CB201 – AVDI cable for connection with Suzuki Marine Engines type 1



CB205 Evinrude Flash Update

cable

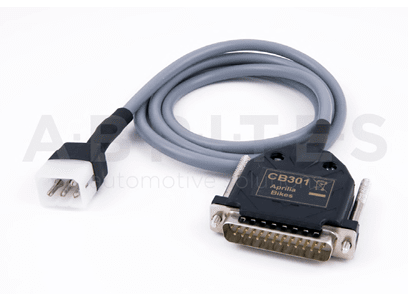

CB301 – AVDI cable for connection

with Aprilia Bikes

CB303 – AVDI cable for connection

with Benelli Bikes

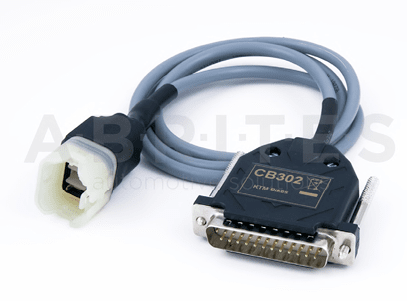

CB302 – AVDI cable for connection

with KTM Bikes

CB304 – AVDI cable for connection

with Suzuki Bikes (6 pins)

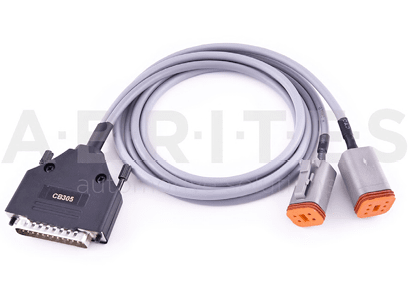

CB305 – AVDI cable for connection

with Harley-Davidson Bikes

CB306 – AVDI cable for connection

with Piaggio Bikes

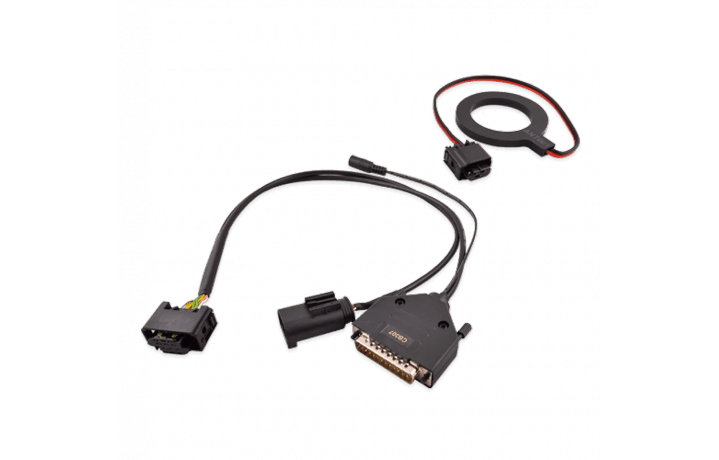

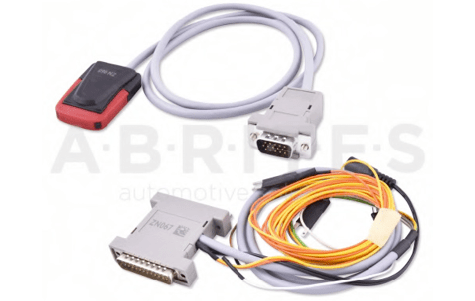

SET307

The SET307 contains a designated cable and antenna for key programming procedures (in All Keys Lost situations and for spare key addition) on BMW motorcycles with smart key on bench on the vehicle when needed.

Contents:

• CB307 Direct CAN-BUS Connection Cable for BMW Bikes
• ANT001 Key Transponder Antenna for BMW Bikes













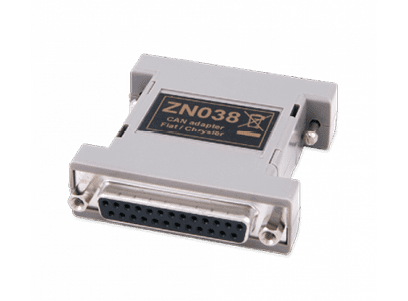

ZN030 ABPROG Set







































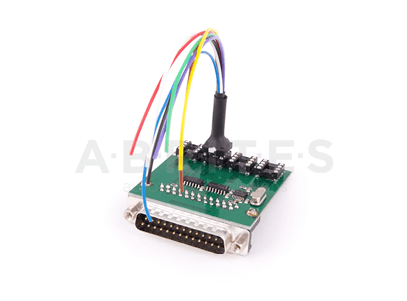

ZN031 - ABPROG EEPROM/

BCM adapter

ZN032 – ABPROG NEC adapter

with socket

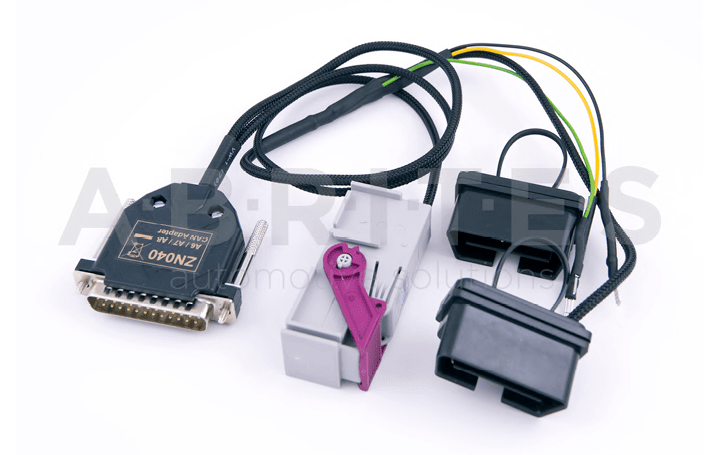

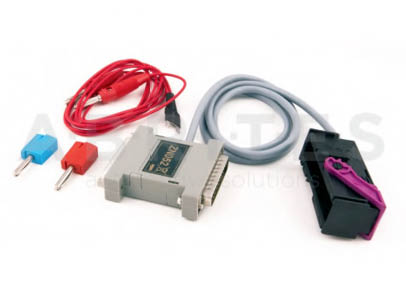

The Abrites A6/A7/A8 CAN Adapter is used in order to make the ALL KEYS LOST procedure for Audi A6/A7/A8 easier providing all necessary connections (OBD,DB25 and CAN separator connector). The set has a separate OBD plug that shorts PIN 1 and 16 on the OBD connector of the car to force ignition while reading the ELV using the green K-line cable.

ZN047 - Field Detector Renault

card 125 kHz









































ZN048 - Field Detector Universal

Key 125/20 kHz

ZN053-AVDI Extractor Cable used with VN006 special function

ZN052-Abrites cable set for adapting IMMO parts used together with VN005

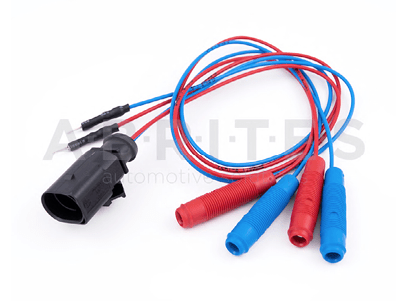

ZN054-Extension cable set for direct CAN connection for VAG vehicles

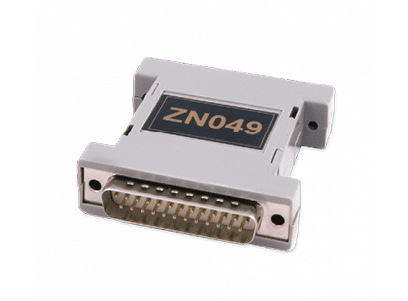

ZN049 - AVDI Adapter for connection with K-Line BMW vehicles (PassThru ONLY)

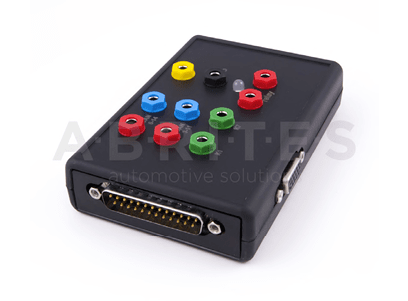

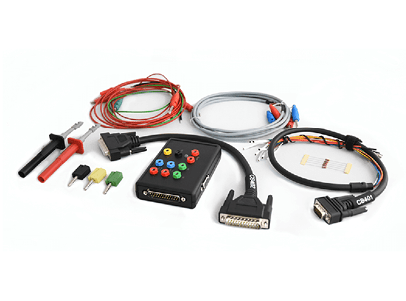

The ZN051 Distribution Box is mainly used together with the MN026 Special function for Abrites Diagnostics For Mercedes and VN004 Special function for VAG. The main purpose is to export the password from the EZS 10 times faster than without the DS Box(MN026) and to read engine ECU in boot mode. It has a hidden relay, which cuts the ignition when needed and re-connects it once again automatically. The DS Box allows us to connect it clean between the AVDI and the OBD. In addition to the Fuse Relay that is now built into the Abrites Distribution Box, it’s work can also be monitored by the built-in LED.

Using the ZN051 we also open the door for many new features. It allows us to work easily with boot mode on EDC17/ MED17 boot mode for the Abrites diagnostics for VAG and others as well.

The distribution box now also includes the option to be updated so all new future functions and features will be available immediately.

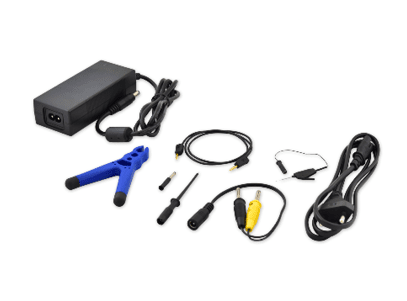

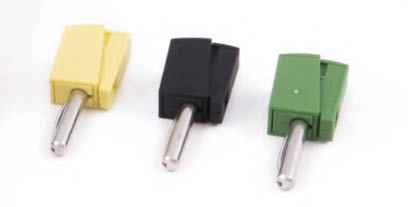

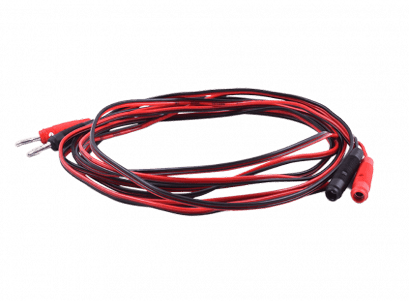

Fuse Adapter Cable ,Crocks

Cable and 1 K-line Cable

































1st two ports (Red and Blue) are for CAN HI and CAN LOW 6-14, the 2nd ports below them are for CAN

HI and CAN LOW 3-11. These ports are mainly used when virginizing and adapting Mercedes TCUs and

ECUs when using MN026.

Both Green ports K1 and K7 are used for the K-Line connection (K7 has to be used when exporting a password from Mercedes EZS whn using the Relay method).

B+ and GND ports are used when updating EM001 Emulator.

The Relay Ports are both in red and this is where the Fuse Adapter is connected.

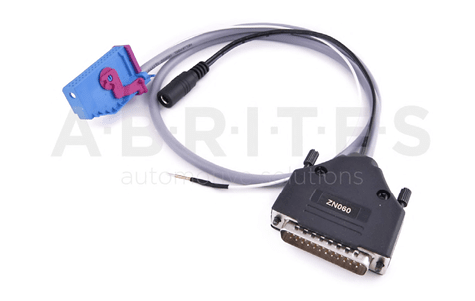

ZN060 - VAG Micronas (new style connector) Cluster Adapter

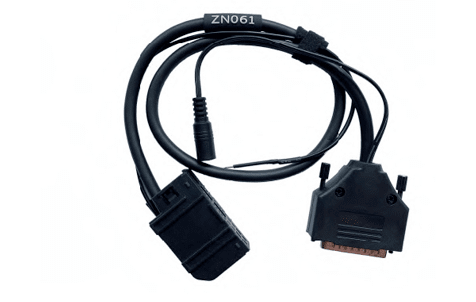

ZN061 - Old-style Micronas

cluster adapter

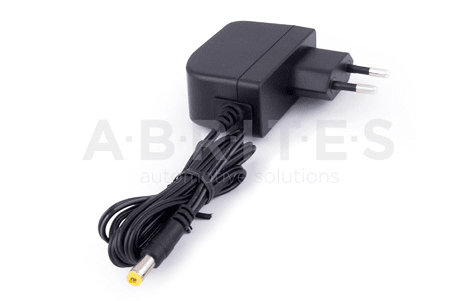

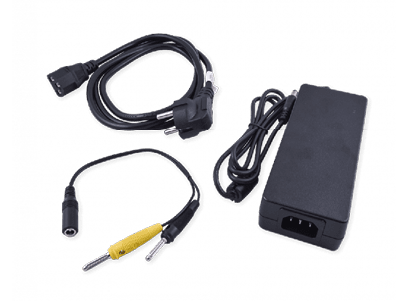

ZN062 - 12V/0.5A DC Power

adapter (used with ZN055

ZN063 - 12V/1A DC Power adapter

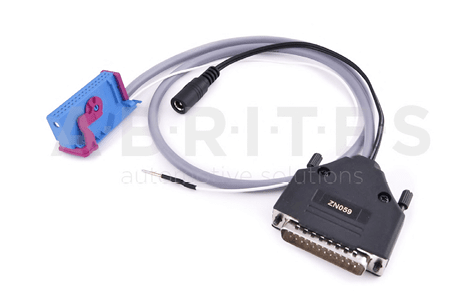

(used with ZN059 - mini DB - VDO and ZN060 - mini DB -

Mictronas)





















ZN065 - PWM Voltage converter

The PWM voltage converter is to be used only in cases when reading an ECU on bench requires the

PWMs to be powered with 5V, instead of the usual 3.3V. The PWM voltage converter is compatible

ONLY with DSBox v. 2.3).”

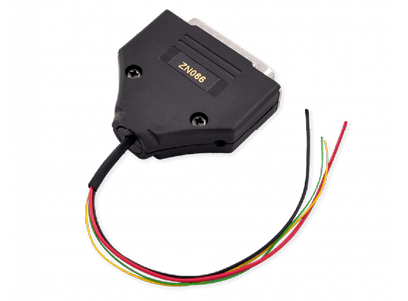

ZN066 - Subaru transponder emulator

ZN069 - Toyota mechanical key (H-type) adapter set









































ZN072 - ABRITES cable set for Tesla Model S/X and Model 3

(information regarding use can be found in the Abrites Diagnostics for Tesla user manual) outdated and replaced by ZN087

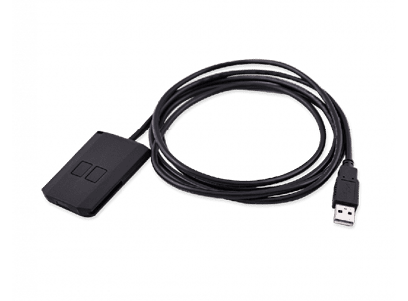

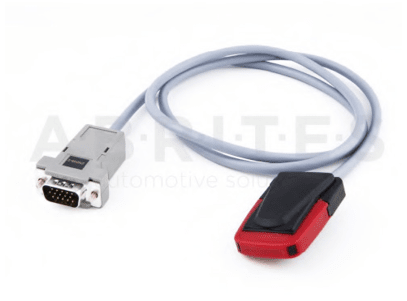

ZN075 - IR Adapter for Mercedes Actros





































ZN079 - ZF 8HP TCU Connection Cable

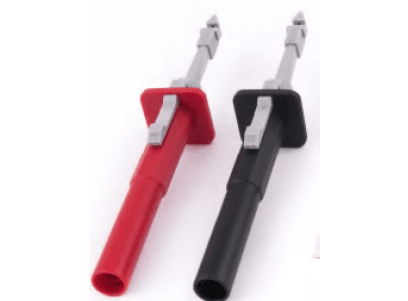

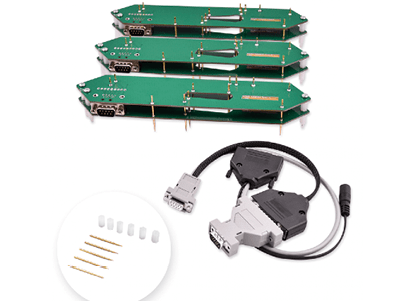

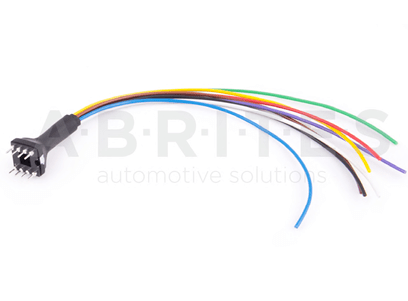

ZN080 - BCM2 Solder-Free Connection Set

ZN085 - Abrites Programmer RH850/V850

ZN087 - ABRITES cable set for Tesla Model S/X and Model 3

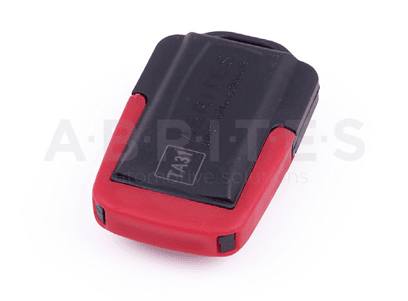

TA31 Abrites Extractor

The TA31 Abrites Extractor can be used to obtain the 7th byte in VAG cars. It is also used in some

Hyundai/Kia cars to read the PIN code from a working key, together with the TA31 Abrites Extractor.

Below you will find two photos of the TA31 Extractor and how it should be properly placed next to the ignition:

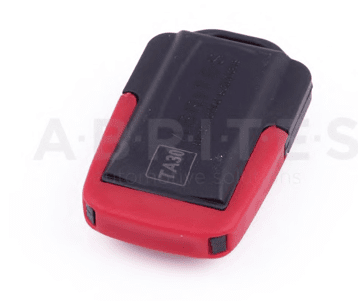

TA30 Abrites DST-AES transponder emulator

The TA30 is a transponder emulator designed to emulate ALL DSTAES transponders where Page 1 is 88, A8 and A9. This allows extended functionality and the ability to program transponders NOT ONLY found in various Toyota vehicles of the latest generation but ALL vehicle types using these transponders, giving the customer the ability to write and lock all pages of the EEPROM as well as write and lock ALL KEYS. Using our software, the customer can also perform TIRIS AES verifying of a AES1 crypto key. The TA30 has been placed in our signature shell giving the product a sleek finish.

This reusable transponder (all previously locked pages can be unlocked) is designed to be programmed with the Abrites TagKeyTool and the PROTAG and will offer a stable working solution for all customers with problems in such vehicles.





















TA41 Subaru DST-AES Emulator

The TA41 Subaru DST-AES Emulator has the ability to emulate a Master key and be used as a key for Subaru H type bladed keys. It requires the Abrites ZN002 to be programmed.

It is used together with the SB001 special function in Subaru ALL KEYS LOST H-type bladed (mechanical) key situations.

The TA41 can also be used and programmed as a key to the vehicle and used as one. It covers the functionality of the ZN066 however requires a PROTAG to do so.

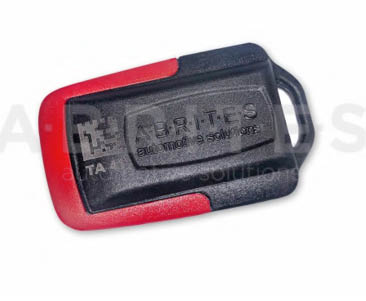

Keys produced by Abrites Ltd.

TA10 - ABRITES key (BCM2)-315 Mhz

TA11 - ABRITES key (BCM2)-433Mhz

TA12 - PCB for Mercedes IR key fob case with chrome 433Mhz

TA13 - PCB for Mercedes IR key fob case small size 433Mhz

TA14 - Abrites KEY for all types Mercedes with IR 433Mhz

TA15 -Abrites KEY for all types Mercedes with IR 315Mhz

TA16 - Abrites KEY-CARD for Renault vehicles

TA19 -Abrites Electronic key head (Renault/Dacia)

TA21 - PCB for Mercedes IR key fob case with chrome 315Mhz

TA22 - PCB for Mercedes IR key fob case small size 315Mhz

TA23 - Abrites electronic key head with remote control (Renault/Dacia)

TA24 - Abrites Chrysler/Dodge/Jeep 2013+ Key

TA27 - Megane 3 / Laguna 3 key PCB

TA28 - Clio 4 / Captur KEYLESS key PCB

TA29 - FIAT 500X keyless

TA30 - DST-AES transponder emulator

TA31 - Abrites extractor

TA34 - ABRITES Renault Megane 4/Talisman KEYLESS key

TA35 - ABRITES Renault Clio 4/Captur KEYLESS key

TA36 - Abrites DST 40bit/DST+ 80bit Electronic key head

TA38 - IC Replacement for Alfa Romeo Giulia/Stelvio

TA39 - Renault Megane 4/Talisman keyless key

TA40 - ABRITES Alfa Romeo Giulia/Stelvio key

TA41 - Subaru DST-AES Emulator

TA44 - AUDI BCM2 PCB FOR ORIGINAL KEY SHELL (868 MHZ)

TA46 - AUDI BCM2 PCB FOR ORIGINAL KEY SHELL (433 MHZ)

TA47 - AUDI BCM2 PCB FOR ORIGINAL KEY SHELL (315 MHZ)

TA48 -ABRITES keyless key for Audi BCM2 vehicles (868 MHz)

TA49 -ABRITES keyless key for Audi BCM2 vehicles (433 MHz)

TA50 - ABRITES keyless key for Audi BCM2 vehicles (315 MHz)

TA51 - Abrites Megamos AES emulator (ID88)

TA52 - Universal BGA PCB for Mercedes-Benz vehicles (FBS3)

TA54 - Abrites key for JLR

TA56 - ABRITES KEY FOR JLR (315 MHZ)

TA57 - ABRITES JLR KEY FOR 2018+ VEHICLES (433 MHZ)

TA58 - ABRITES JLR KEY FOR 2018+ VEHICLES (315 MHZ)

TA59 - Volkswagen Touareg keyless key (868 MHz)

TA60 - Volkswagen Touareg key- (868 MHz)

















TA62 - ABRITES JLR KEY FOR 2020+ VEHICLES (433 MHZ)

TA63 - ABRITES JLR KEY FOR 2020+ VEHICLES (315 MHZ)

TA64 - ABRITES HITAG-AES Emulator

TA65 - RENAULT CLIO V KEYLESS KEY

TA66 - Abrites Key for 2018+ JLR vehicles (433 MHz)

TA67 - Abrites Key for 2018+ JLR vehicles (315 MHz)

TA68 - Abrites DST-AES transponder emulator

ТА69 - ABRITES infra-red Key for Mercedes-Benz trucks















You can find more information about the Abrites’ keys either in our website

https://abrites.com/ or in our online store at https://abrites.com/shop

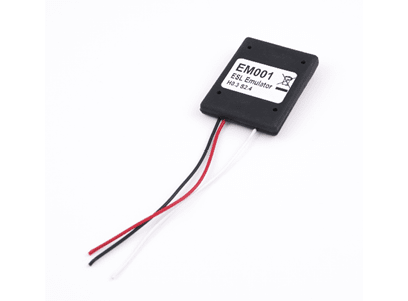

EM001 - ABRITES ESL Emulator for Mercedes

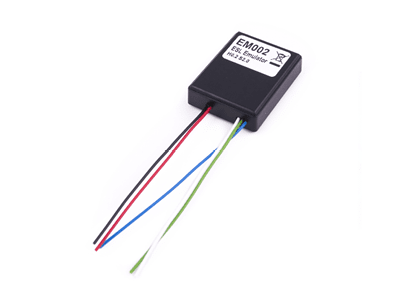

EM002 - ABRITES ESL Emulator for Renault

EM004 emulator – Video in Motion CAN Filter 125k (W167 W292)

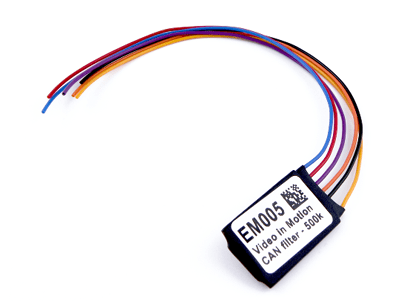

EM005 emulator – Video in Motion CAN Filter 500k (W216 W221)

EM009 emulator – Mercedes Odometer correction emulator with jumper cable for dash for W204/W212 (FBS3/FBS4)

EM008 emulator – Mercedes Odometer calibration emulator for W204,W205,W212 (FBS3/FBS4)

EM010 - Renault ESL Emulator with Clio IV type connecto









































EM011 - Renault ESL Emulator with Megane IV/Talisman type connector

EM014 - Odometer calibration emulator for Mercedes-Benz W213

EM012 - ABRITES ESL Emulator for Mercedes-Benz W204/W207/W212

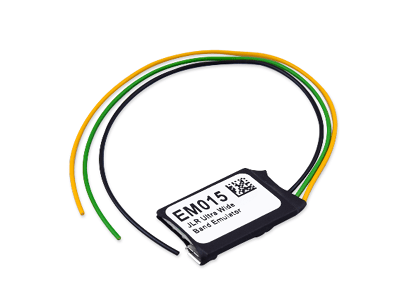

EM015 - JLR Ultra-Wide Band Emulator (for connecting EM015, please refer to the Abrites Diagnostics for Jaguar/Land Rover User Manual):

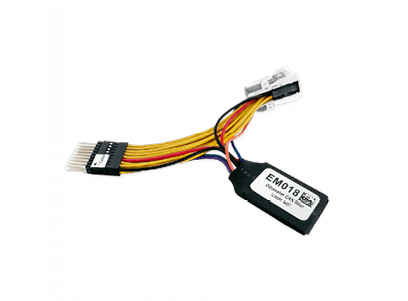

EM018 - Odometer calibration with jumper cable for dash - W204, W212, W205 (FBS3/FBS4)

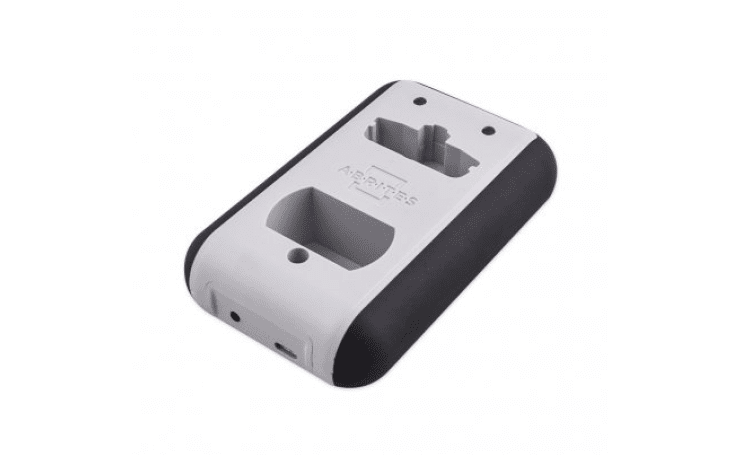

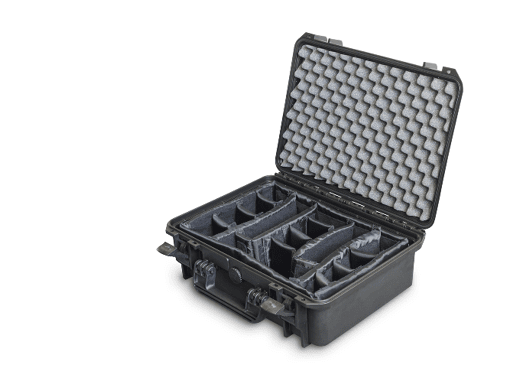

ATC01 - Abrites Tough Case -

Small size

ATC02 - Abrites Tough Case - Medium size

























































Using the license viewer you can check your licenses yourself at any time by typing “License viewer” in the Windows search menu.





















Each AVDI includes an Annual Maintenance Subscription (AMS) and Support Plan Service (SPS) for the first year of use in order to make sure that you get the full AVDI experience straight away. The AMS allows receiving the latest updates on the AVDI diagnostic software, and the SPS guarantees swift and effective technical support from our team of experienced professionals.

Furthermore, you will be able to perform basic diagnostics to all supported brands - Audi, Volkswagen, Seat, Skoda, Bentley, Lamborghini, BMW, MINI, Rolls Royce, Renault, Dacia, Mercedes-Benz, SMART, Mitsubishi, GM, Peugeot, Citroen, Opel/Vauxhall, Porsche, Honda, Ford, Mazda, Jaguar, Land Rover, Toyota, Lexus, Volvo, FIAT, Alfa Romeo, Lancia, Jeep, Subaru, Nissan, Infiniti, Chrysler, Dodge, Kia, Hyundai, Suzuki, Daihatsu, DAF, Aprilia, BMW, Bombardier Recreational Products and others.

The basic diagnostics that can be performed to all brands listed above are as follows:

• Complete vehicle scan
• Module identification – see all modules in the vehicle, complete with VIN and part numbers (where applicable)
• Reading and clearing diagnostic trouble codes (DTCs)
• Live data display – see live data from the sensors in the vehicle in real time
• Actuator testing – identify any possible issues in the car by performing actuator tests

















The basic AVDI software package offers a range of dynamic functionalities that are continuously evolving. We are committed to enhancing your experience by regularly introducing new features and seamlessly integrating additional licenses into the basic package. This constant evolution ensures that you receive maximum value from your AVDI usage.

Here are some of the most interesting features included in the basic package:

BMW

• EWS1/EWS2 key programming by EWS dump, using the ZN002 or ZN003 PROTAG V2
• EWS3 key programming using the ZN055 ABPROG EWS3 adapter and the ABPROG
• CAS1/CAS2/CAS3/CAS3+/BDC key programming completely by OBDII(ZN002 or ZN003 PROTAG V2 is required)

Renault/Dacia

• Key programming for all vehicles up to 2014 (including Clio IV)
• Key programming for the SMART 453/ Renault Twingo III

Mercedes Benz

• SCN coding (e.g. DPF regeneration) in Mercedes Vehicles
• Mercedes-Benz eVito Speed Limit Calibration
• Key programming by dump (DAS 2/2a/2b/ DAS 3)
• Cluster calibration and adaptation for vehicles up to 2014
• SCN coding completely by OBDII (no Xentry online account is required
• CPC modifications by OBDII:
• VMAX limiter removal
• Exhaust flaps adjustment
• Torque limiter adjustment
• SBC counter reset
• Enable Video in Motion

Toyota

• Key programming for all vehicles produced up to 2018 (G-type keys (mechanical and smart keys) and H-type keys (only smart keys),
• Key identification and cloning,

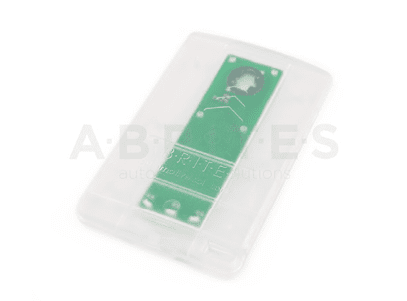

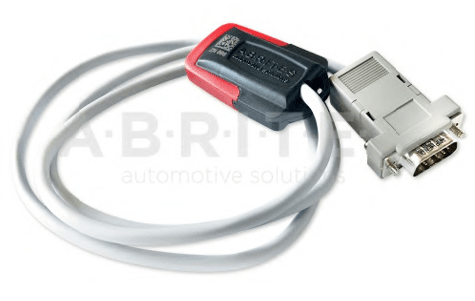

• Reset and subsequent reuse of smart keys (ZN002 or ZN003 PROTAG V2 is required)

Honda

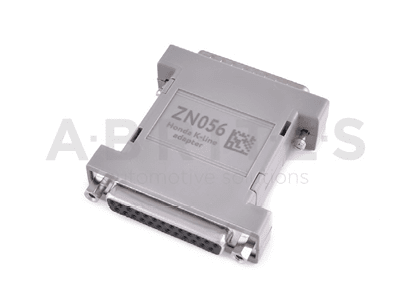

• Key programming for all vehicles up to 2022

















FCA

• Key Programming for many models up to 2019

Jaguar and Land Rover

• Key Programming and Remote control programming for vehicle up to 2018

Tesla

• Diagnostics and Service functions

You can find all details about the basic AVDI functionalities in our website abrites.com > section “AVDI“, we are constantly adding new features, so make sure you check the full description in the page.

(AVDI website page)
