Abrites Diagnostics

for mclaren online

The Abrites software and hardware products are developed, designed and manufactured by Abrites Ltd. During the production process we comply to all safety and quality regulations and standards, aiming at highest production quality. The Abrites hardware and software products are designed to build a coherent ecosystem, which effectively solves a wide range of vehicle-related tasks, such as:

• Diagnostic scanning;

• Key programming;
• Module replacement,
• ECU programming;
• Configuration and coding.

All software and hardware products by Abrites Ltd. are copyrighted. Permission is granted to copy Abrites software files for your own back-up purposes only. Should you wish to copy this manual or parts of it, you are granted permission only in case it is used with Abrites products, has “Abrites Ltd.” written on all copies, and is used for actions that comply to respective local law and regulations.

You, as a purchaser of Abrites hardware products, are entitled of a two-year warranty. If the hardware product you have purchased has been properly connected, and used according to its respective instructions, it should function correctly. In case the product does not function as expected, you are able to claim warranty within the stated terms. Abrites Ltd. is entitled to require evidence of the defect or malfunction, upon which the decision to repair or substitute the product shall be made.

There are certain conditions, upon which the warranty cannot be applied. The warranty shall not apply to damages and defects caused by natural disaster, misuse, improper use, unusual use, negligence, failure to observe the instructions for use issued by Abrites, modifications of the device, repair works performed by unauthorized persons. For example, when the damage of the hardware has occurred due to incompatible electricity supply, mechanical or water damage, as well as fire, flood or thunder storm, the warranty does not apply.

Each warranty claim is inspected individually by our team and the decision is based upon thorough case consideration.

Read the full hardware warranty terms on our website.

Copyright:

• All material herein is Copyrighted ©2005-2025 Abrites, Ltd.

• Abrites software, hardware, and firmware are also copyrighted
• Users are given permission to copy any part of this manual provided that the copy is used with Abrites products and the “Copyright © Abrites, Ltd.” statement remains on all copies
• “Abrites” as used in this manual synonymous with “Abrites, Ltd.” And all it’s affiliates
• The “Abrites” logo is a registered trademark of Abrites, Ltd.

Notices:

• The information contained in this document is subject to change without prior notice. Abrites shall not be held liable for technical/editorial errors, or omissions herein.
• Warranties for Abrites products and services are set forth in the express written warranty statements accompanying the product. Nothing herein should be construed as constituting any additional warranty.
• Abrites assumes no responsibility for any damage resulting from the use, misuse, or negligent use of the hardware or any software application.

The Abrites products are to be used by trained and experienced users in diagnostics and reprogramming of vehicles and equipment. The user is assumed to have a good understanding of vehicle electronic systems, as well as potential hazards while working around vehicles. There are numerous safety situations that cannot be foreseen, thus we recommend that the user read and follow all safety messages in the available manual, on all equipment they use, including vehicle manuals, as well as internal shop documents and operating procedures.

Some important points:

Block all wheels of the vehicle when testing. Be cautious when working around electricity.

• Do not ignore the risk of shock from vehicle and building-level voltages.
• Do not smoke, or allow sparks/flame near any part of the vehicle fuel system or batteries.
• Always work in an adequately ventilated area, vehicle exhaust fumes should be directed towards the exit of the shop.
• Do not use this product where fuel, fuel vapours, or other combustibles could ignite.

In case any technical difficulties occur, please contact the

Abrites Support Team by email at support@abrites.com.

1. Introduction

2. Abrites Diagnostics for McLaren

2.1 Scope of the manual

2.2 Getting Started

3. Special Functions

Congratulations on choosing our wonderful product!

The “Abrites Diagnostics for McLaren Online” is an Online server based Abrites software for McLaren vehicles.

Advanced Diagnostic for McLaren Vehicles (ML001) is a specialized software solution developed to provide comprehensive diagnostic, configuration, and calibration capabilities for McLaren vehicles. Designed for professional automotive technicians, it delivers advanced functions that go beyond standard diagnostics, ensuring precise control and efficient maintenance of complex McLaren systems.

Supported essential features such as stored data writing (coding), vehicle and gateway configuration alignment, and a set of guided calibration and diagnostic functions covering key control units including CCU, ECM, ESP, SAS, and more. Subsequent versions will expand the functionality with VIN change support and additional guided procedures.

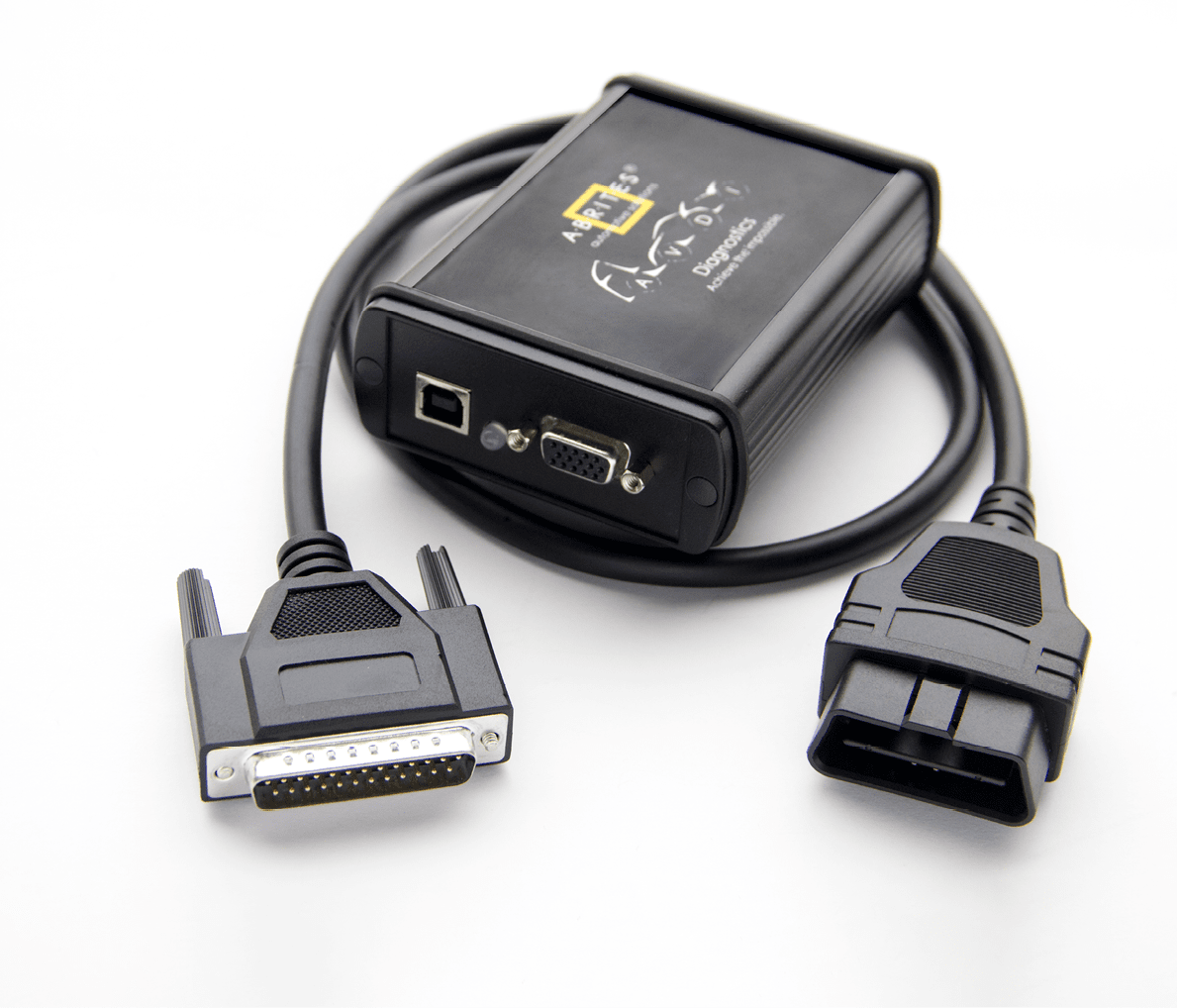

For proper operation of your diagnostic software you will need a corresponding interface for connection between your PC and vehicle named “AVDI”.

AVDI is an interface produced by Abrites Ltd. intended to act as an interface between the PC and the electronic control units.

AVDI should be used with ABRITES software produced by Abrites Ltd.

ABRITES is a trade mark of Abrites Ltd

2.1 Scope of the manual

This document describes the usage of Abrites Diagnostics for McLaren Online. The document is applicable for the latest software version. In this manual we suppose that the software for your AVDI interface is already installed. Please refer the “AVDI Common User’s Manual” in case it is not.

System requirements:

• Minimum system requirements – Windows 11

2.2 Getting Started

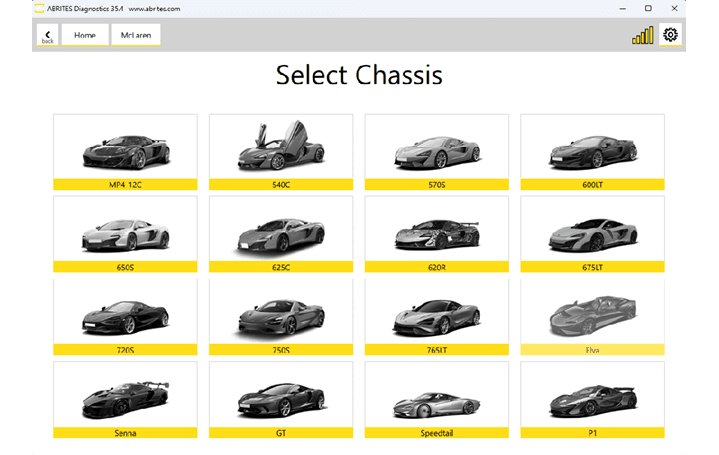

You can start Abrites Diagnostics for McLaren Online by starting the Abrites Quick Start application and selecting McLaren icon. Once you select the brand you can select the model you are working on

The ABRITES Diagnostics for McLaren offers all standard functionalities as follows:

• Full Vehicle Scan
• Read/Clear DTCs
• Live Data Monitoring

The Advanced Diagnostic for McLaren Vehicles (ML001) provides a powerful range of special functions designed to support configuration, calibration, and diagnostic tasks across all McLaren models. These functions allow technicians to perform complex operations with precision and confidence, ensuring optimal performance and system synchronization.

1. Stored Data Write (Coding) Enables modification and adaptation of control unit parameters. This includes writing stored data and performing coding operations to align system configurations when replacing or updating modules.

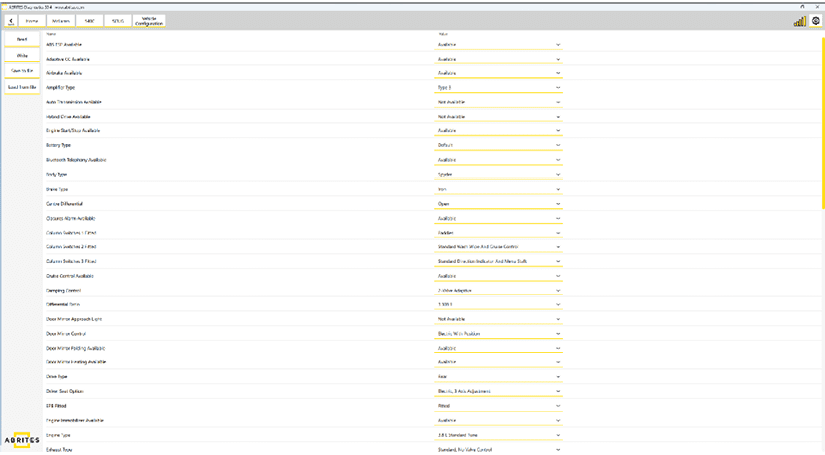

2. Vehicle Configuration Alignment

Automatically synchronizes the vehicle configuration and gateway configuration, ensuring consistent system communication and eliminating configuration mismatches after component replacements or updates.

3. Guided Functions

Interactive, step-by-step guided procedures that simplmfy complex calibrations and adaptations. Current guided functions include:

• [CCU] Acceleration Zero Calibration
• [CCU] Suspension Pressure Sensor Calibration
• [SCML/SMCR] Seat Calibration
• [SAS] Zero Position Steering Wheel (Fine Tuning)
• [ESP] Yaw Rate Sensor Calibration
• [SCUG] Steering Column Calibration
• [DMR/DML] Door Windows Calibration

4. Diagnostic Tests

Comprehensive test routines for evaluating system performance and component functionality:

• [ADI] Speaker System and Output Tests
• [CCU] Adaptive Damping Configuration Check

• [ECM] Cam Control, Catalyst, Purge System, and Secondary Air Diagnostics

• [ECM] Throttle Adaptations Clear/Save
• [HVAC] Sensor Electrical Test

5. Resets

Functions designed to restore control units to factory or default conditions:

• [PCCU/TCU] Gear and Clutch Adaptations Reset
• [TPMS] TPMS Factory Reset
• [ADI/IC] ADI Default Configuration Restore

6 Configurations

• Options for enabling, disabling, or modifying vehicle features:
• [ADI] Radio Configuration
• [BC] Heated Screen Configuration
• [ESP] Dynamometer Mode Enable
